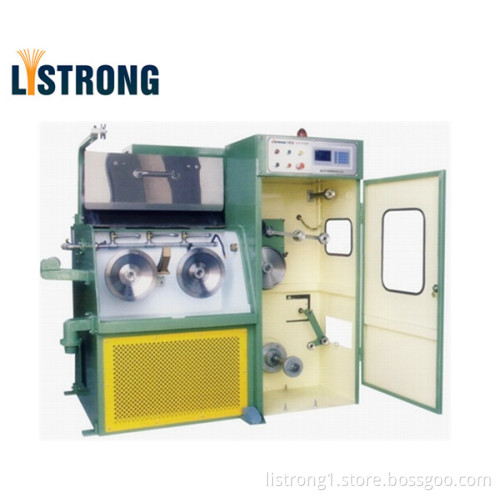

14DG Copper-clad Steel Wire Drawing Machine
- Min. Order:
- 2
- Min. Order:
- 2
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Supply Ability: | 4 sets |
| Certificate: | ISO9001:2008 |
|
Machine type |
14DG |
|
Inlet diameter(MM) |
0.6-1.6 |
|
Outlet diameter (MM) |
0.25-0.5 |
|
Max. speed(MPM) |
1200 |
|
Max.Number of Drawing dies |
14 |
|
Fix speed capstan slip ratio |
8% |
|
Slip ratio of m/c |
12% |
|
Capstan |
Tungsten |
|
Max. Capstan dia. (MM) |
380 |
|
Fix speed capstan dia. (MM) |
330 |
|
Frame |
Welded by steel plate |
|
Main machine power |
18.5KW three phase AC-motor |
|
Spooler power |
5.5KWthree phase AC-motor |
|
Correction system |
Automatically control |
|
Dynamic control |
Double frequency converters control |
|
Transmission method |
By timing belts |
|
Pay-off method |
Over head |
|
Traversing method |
Flat belt + timing motor |
|
Tension control |
Weight balance by swing arm |
|
Lubrication system of drawing |
Half-immersing +spray |
|
Suitable spool (MM) |
400 |
|
Capacity for take-up(KG) |
35 |
|
Loading & unloading method |
Shaft type |
|
Service voltage |
380V |
|
Brake |
Electromagnetic brake |
|
Machine dimension |
1950L x 1100W x 1750H |
|
Machine weight(kg) |
2200 |
