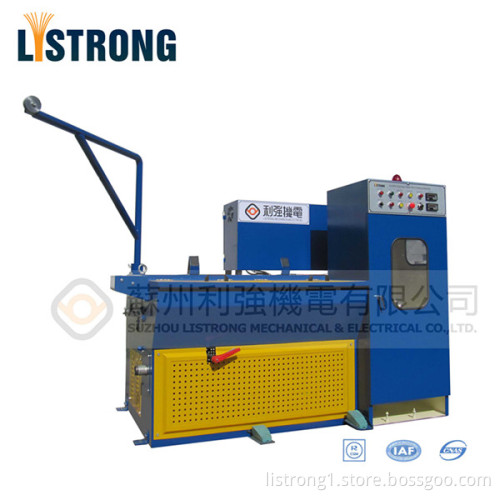

24DB24DBW stainless steel wire drawing machine
- Min. Order:
- 2
- Min. Order:
- 2
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Supply Ability: | 4 sets |
| Certificate: | ISO9001:2008 |
|
Machine type |
24DB |
24DBW |
|
Inlet diameter(MM) |
0.5-1.0 |
1.0-1.6 |
|
Outlet diameter (MM) |
0.08-0.2 |
0.1-0.5 |
|
Max. speed(MPM) |
800 |
800 |
|
Max. Number of Drawing dies |
24 |
24 |
|
Slip ratio of m/c |
13% |
13% |
|
Fix speed capstan slip ratio |
8% |
8% |
|
Capstan |
Tungsten |
Tungsten |
|
Max. Capstan dia.(MM) |
202 |
202 |
|
Fix speed capstan dia. (MM) |
167 |
167 |
|
Frame |
Welded by steel plate |
Welded by steel plate |
|
Main machine power |
11KW Three phase AC-motor |
18.5KW Three phase AC-motor |
|
Spooler power |
4KW Three phase AC-motor |
5.5KW Three phase AC-motor |
|
Correction system |
Automatically control |
Automatically control |
|
Dynamic control |
Double frequency converters control |
Double frequency converters control |
|
Transmission method |
Flat belt |
Timing belt |
|
Pay-off method |
Over head |
Over head |
|
Traversing method |
Flat belt + timing motor |
Flat belt + timing motor |
|
Tension control |
Weight balance by swing arm |
Weight balance by swing arm |
|
Lubrication system of drawing |
Immersing type+ Spray type |
Immersing type+ Spray type |
|
Suitable spool (MM) |
300 |
300 |
|
Capacity for take-up(KG) |
13 |
13 |
|
Loading & unloading method |
Shaft type |
Shaft type |
|
Service voltage |
380V |
380V |
|
Brake |
Electromagnetic brake |
Electromagnetic brake |
|
Machine dimension |
2300L x 1300W x 1900H |
2300L x 1300W x 1900H |
|
Machine weight |
2500 |
2500 |
