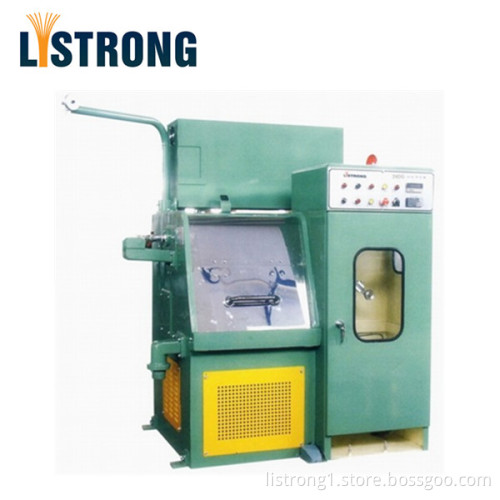

24DL-B Copper-clad Aluminum Fine Wire Drawing Machine
- Min. Order:
- 2
- Min. Order:
- 2
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Supply Ability: | 4 sets |
| Certificate: | ISO9001:2008 |
|
Machine type |
24DL-B |
|
Inlet diameter(MM) |
0.5-1.0 |
|
Outlet diameter (MM) |
0.08-0.25 |
|
Max. speed(MPM) |
1800 |
|
Max. Number of Drawing dies |
24 |
|
Slip ratio of m/c |
10% |
|
Fix speed capstan slip ratio |
6% |
|
Capstan |
Ceramic plasma |
|
Max. Capstan dia.(MM) |
194 |
|
Fix speed capstan dia. (MM) |
159 |
|
Frame |
Cast in iron |
|
Main machine power |
7.5KW three phase AC-motor |
|
Spooler power |
2.2KW three phase AC- motor |
|
Correction system |
Automatically control |
|
Dynamic control |
Double frequency converters control |
|
Transmission method |
By flat belts |
|
Pay-off method |
Over head |
|
Traversing method |
Flat belt + synchronous motor |
|
Tension control |
Pneumatic balance by swing arm |
|
Lubrication system of drawing |
Half-immersing +Spray type |
|
Suitable spool (MM) |
300 |
|
Capacity for take-up(KG) |
35 |
|
Loading & unloading method |
Shaft type |
|
Service voltage |
380V |
|
Brake |
Electromagnetic brake |
|
Machine dimension |
2050L x 1600W x 1899H |
|
Machine weight |
2500 |
