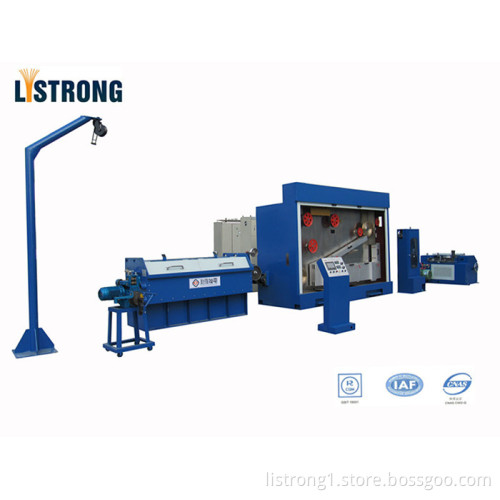

13DST Large-medium wire drawing machine with continuous anne
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Suzhou |
|---|---|
| Supply Ability: | 4 sets |
| Certificate: | ISO9001:2008 |
|
Machine type |
13DST |
|
Inlet diameter(MM) |
3.0-3.5 |
|
Outlet diameter (MM) |
0.8-2.8 |
|
Max. speed(MPM) |
1800 |
|
Max. Number of Drawing dies |
13 |
|
Slip ratio of m/c |
19.5% |
|
Fix speed capstan slip ratio |
16.5% |
|
Capstan |
Tungsten |
|
Max. Capstan dia. (MM) |
280 |
|
Fix speed capstan dia. (MM) |
280 |
|
Frame |
Welded |
|
Main machine power |
55KW AC-motor |
|
Spooler power |
11KW AC-motor |
|
Correction system |
Automatically control |
|
Dynamic control |
Double frequency converters control |
|
Transmission method |
By gear |
|
Pay-off method |
Over head |
|
Traversing method |
Decelerate motor |
|
Tension control |
Weight balance by swing arm |
|
Lubrication system of drawing |
Half-immersing type +Spray type |
|
Suitable spool (MM) |
630MAX |
|
Capacity for take-up(KG) |
1200-1800 |
|
Service voltage |
380V |
|
Brake |
Electromagnetic brake |
