Vibration Sieve Series
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 25 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Jiangsu, China |
|---|---|
| Supply Ability: | 100 |
| Certificate: | ISO9001-2000,CE |
| Place of Origin | Jiangsu, China (Mainland) |
|---|---|
| Brand Name | HB |
| Model Number | ZDS |
| Type | Circular |
| Application | plastic recycling |
| Condition | New |
| Feature | vibration sieve |
| Quality | High |
Payment & Shipping Terms:
| Price: |
FOB USD 10000~20000 / Set Get Latest Price |
|---|---|
| Minimum Order Quantity: | 1 Set/Sets |
| Port: | shanghai |
| Packaging Details: | wooden case |
| Delivery Time: | Approx 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15 Set/Sets per Month |

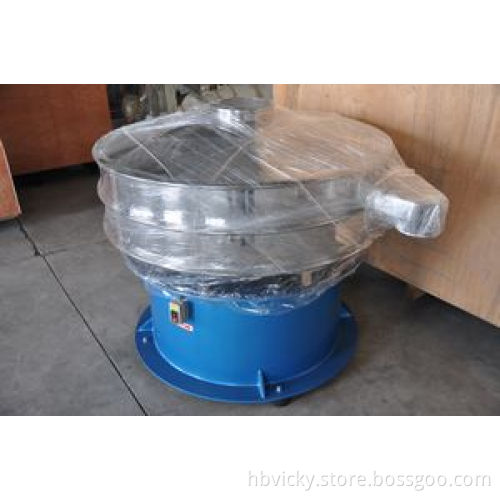

Rotary vibrating screen machine
ZDS Series vibrating screen applicatio,for lower feed rates and simpler control screening operations; fractionating of dry, powdered and granular products, and liquid-solid separation; particularly well suited for heavy products and wet screening.
Particle feed sizes- 1 micron up to 20 mm
Feed rates- 1kg/h - 10 to/h depending on machine size
Bulk densities- 200 - 10000 grams/litre
Mesh openings- 20 microns to 20 mm
No. of screen decks - 1 - 5 per machine
Screens usable- Stainless steel or plastic wire mesh fabric, perforated plates
Anti blinding systems
- Rubber balls
- Slider rings
- Ultrasound converters
- Combinations
dimensional, set to product
Amplitud 3 - 6 mm
Acceleratio 3 - 6 g
Model sizes S49-400.600.800.100.1200.1500.1800.2000
Materials Stainless steel or carbon steel
Features
High efficiency, refined design, duration ,any powders and mucilage are suitable for using.
Easily to replace the screen, simple operation and convenience washing.
Never jam the screen, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
Discharge the impurity and coarse materials automobile and operates continuously.
Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
Small volume, move easily.
The highest layers of the screen are about 5 layers. But 3 lagers are suggested.
Scope of application
Chemical industry: resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine power.
Food industry: sugar powder, starch, salt, rice noodles, milk powder, soybean milk, egg powder, sauce, syrup.
Metal, metallurgy mining industry; aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyse copper powder, electo magnetism materials, rubbing powder, fire-proof material, kaolin, lime, alumina, heavy calcium carbonate, quartz.
Social pollution disposed; disposed oil, disposed water, disposed dye waste water,assistant detergent, active carbon.
