dc to ac car adapter 5000W 350VDC 220VAC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HongKong, ShangHai, ShenZhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,EXW |
HS Code: | 8504403090 |
Transportation: | Ocean,Land,Air,Express |
Port: | HongKong,ShangHai,ShenZhen |
Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of Inverter Charger、Battery Inverter Dc to Ac、best battery inverter.
Why choose develpower?
Perfect after-sales service, give you worry-free life & happy life.
What can you do with a power inverter?
You can choose to store or release electricity at different time periods to save on electricity bills(economic friendly).
Still struggling with high electricity bills?Choose to live off-grid and save you valuable money.

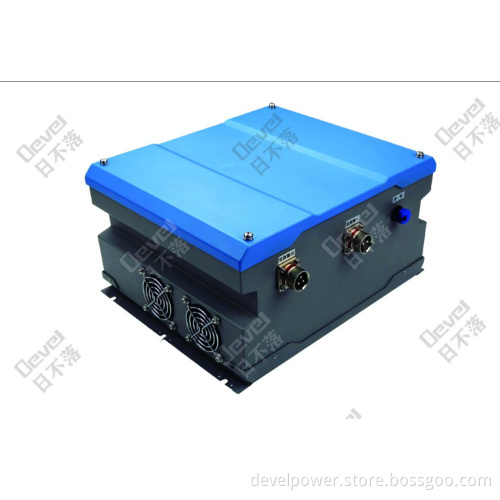

Car Inverter 5000w 350vdc 220vac, this kind of Car Inverter,which is made from high-quality materials,is suitable for offices, cars, boats, yachts, etc.
What is the difference between an inverter and an inverter charger?
An inverter is a device that converts DC (battery) power into AC power and then distributes it to electrical appliances connected to it. An inverter/charger performs the same function, except that it is coupled to an AC source to continually charge the attached battery banks when AC power is available.
Devel -- Power experts you can trust!
Features
● High-tech soft switch control, the system maximum efficiency is not less than 96%.
● Over-temperature, over-current and short-circuit protection.
● Small volume, light weight, greatly saving space; non-isolation design.
● Can be connected with the original vehicle with a low-voltage interlock.
● Meet the electromagnetic compatibility requirements of GB / T18655-2010, ISO11452-2-2004, and EN50091-2.
● Meet the safety standards of GB / T18384-2001 for electric vehicles.
● Mainly used for new energy vehicles, but also used for most pure electric vehicles and hybrid vehicles.
Models | HES3K | HES5K | HES10K | HES12K | HES15K | HES30K | HES45K | |
DC input |
Input voltage | 270-750VDC | 450-650VDC | 300-700VDC | ||||
Rated voltage | 350VDC | 540VDC | ||||||
Principle | IGBT/SPWM | |||||||
AC output |
Power (W) | 3K | 5K | 10K | 12K | 15K | 30K | 45K |
Voltage | AC220V±2% | AC380/400/415V | ||||||
(Line voltage) | ||||||||
Frequency | 50Hz±0.05% | 50Hz/ 60Hz±0.25% | ||||||
Full-load efficiency | >=95% | >=96% | ||||||
Protection | Over-voltage, low-voltage, overload, short circuit, over-temperature. | |||||||
Others | Cooling | Temperature control fan cooling | ||||||
Working | -40℃~+60℃ | -25℃~+55℃ | ||||||
temperature | ||||||||
Storage | -45℃~+70℃ | -40℃~+65℃ | ||||||
temperature | ||||||||
Size (mm) | 331*266*166 | 431*266*166 | 440*750*178(4U) | |||||
Weight (kg) | 12 | 15 | 19 | 21 | 25 | 48 | 48 |
