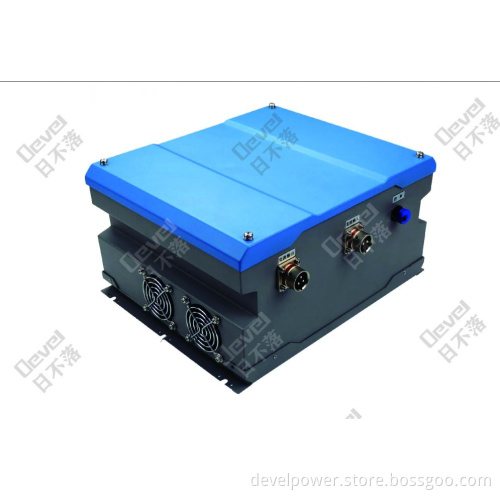

ac converter for car 3000W 350VDC 220VAC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HongKong, ShangHai, ShenZhen
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,EXW |
HS Code: | 8504403090 |
Transportation: | Ocean,Land,Air,Express |
Port: | HongKong,ShangHai,ShenZhen |
Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of Inverter Charger、best battery inverter、Portable Outdoor Power Supply.
Why choose develpower?
Perfect after-sales service, give you worry-free life & happy life.
What can you do with a power inverter?
You can choose to store or release electricity at different time periods to save on electricity bills(economic friendly).
What is the difference between an inverter and an inverter charger?
An inverter is a device that converts DC (battery) power into AC power and then distributes it to electrical appliances connected to it. An inverter/charger performs the same function, except that it is coupled to an AC source to continually charge the attached battery banks when AC power is available.
Want a life that is not affected by the grid?It's time for getting a combination of inverters and batteries.
Inverter Charger 1000W 24VDC 110VAC, this kind of Car Inverter,which is made from high-quality materials,is suitable for offices, cars, boats, yachts, etc.
Devel -- Trustworthy partner for your good life!
Features
● High-tech soft switch control, the system maximum efficiency is not less than 96%.
● Over-temperature, over-current and short-circuit protection.
● Small volume, light weight, greatly saving space; non-isolation design.
● Can be connected with the original vehicle with a low-voltage interlock.
● Meet the electromagnetic compatibility requirements of GB / T18655-2010, ISO11452-2-2004, and EN50091-2.
● Meet the safety standards of GB / T18384-2001 for electric vehicles.
● Mainly used for new energy vehicles, but also used for most pure electric vehicles and hybrid vehicles.
Models | HES3K | HES5K | HES10K | HES12K | HES15K | HES30K | HES45K | |
DC input |
Input voltage | 270-750VDC | 450-650VDC | 300-700VDC | ||||
Rated voltage | 350VDC | 540VDC | ||||||
Principle | IGBT/SPWM | |||||||
AC output |
Power (W) | 3K | 5K | 10K | 12K | 15K | 30K | 45K |
Voltage | AC220V±2% | AC380/400/415V | ||||||
(Line voltage) | ||||||||
Frequency | 50Hz±0.05% | 50Hz/ 60Hz±0.25% | ||||||
Full-load efficiency | >=95% | >=96% | ||||||
Protection | Over-voltage, low-voltage, overload, short circuit, over-temperature. | |||||||
Others | Cooling | Temperature control fan cooling | ||||||
Working | -40℃~+60℃ | -25℃~+55℃ | ||||||
temperature | ||||||||
Storage | -45℃~+70℃ | -40℃~+65℃ | ||||||
temperature | ||||||||
Size (mm) | 331*266*166 | 431*266*166 | 440*750*178(4U) | |||||
Weight (kg) | 12 | 15 | 19 | 21 | 25 | 48 | 48 |
