Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of home battery backup、uninterruptible power supply、solar inverter、car inverter for home.
Finding high quality inverter for your lovely car? New energy vehicles inverter may give you good choices.

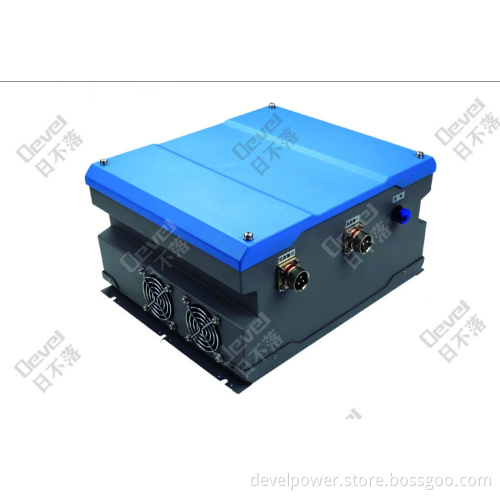

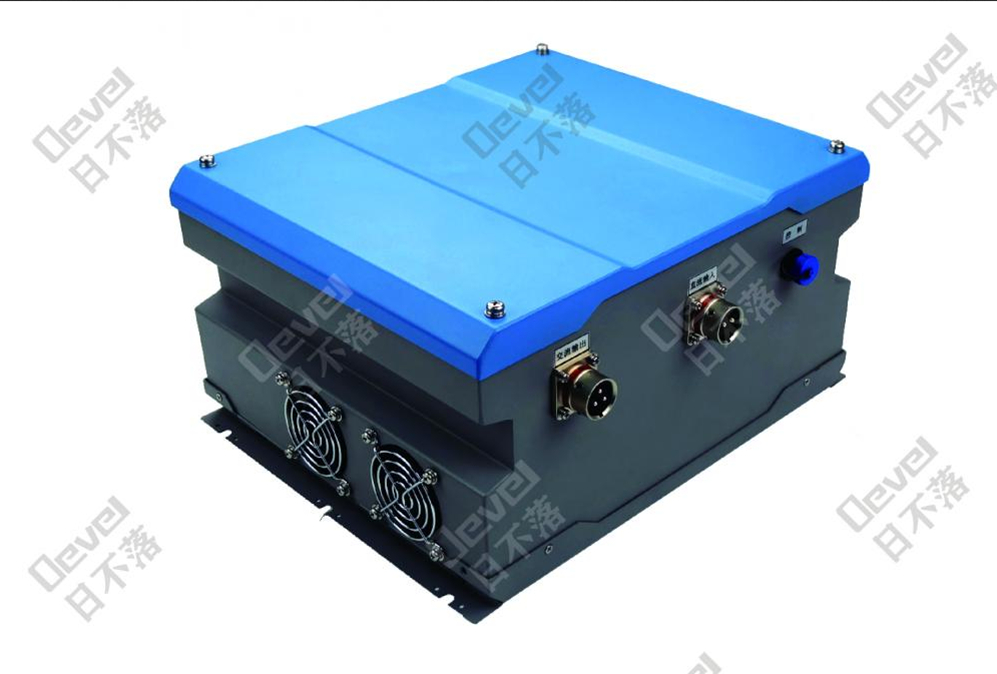

3000W Car Inverter NEVs, whose voltage range can up to 750VDC,is mainly used for new energy vehicles, but also used for most pure electric vehicles and hybrid vehicles.HES Series,provide your car huge power!
Features
● High-tech soft switch control, the system maximum efficiency is not less than 96%.
● Over-temperature, over-current and short-circuit protection.
● Small volume, light weight, greatly saving space; non-isolation design.
● Can be connected with the original vehicle with a low-voltage interlock.
● Meet the electromagnetic compatibility requirements of GB / T18655-2010, ISO11452-2-2004, and EN50091-2.
● Meet the safety standards of GB / T18384-2001 for electric vehicles.
● Mainly used for new energy vehicles, but also used for most pure electric vehicles and hybrid vehicles.
| Models | HES3K | HES5K | HES10K | HES12K | HES15K | HES30K | HES45K | |
|
DC input |
Input voltage | 270-750VDC | 450-650VDC | 300-700VDC | ||||
| Rated voltage | 350VDC | 540VDC | ||||||
| Principle | IGBT/SPWM | |||||||
|
AC output |
Power (W) | 3K | 5K | 10K | 12K | 15K | 30K | 45K |
| Voltage | AC220V±2% | AC380/400/415V | ||||||
| (Line voltage) | ||||||||
| Frequency | 50Hz±0.05% | 50Hz/ 60Hz±0.25% | ||||||
| Full-load efficiency | >=95% | >=96% | ||||||
| Protection | Over-voltage, low-voltage, overload, short circuit, over-temperature. | |||||||
| Others | Cooling | Temperature control fan cooling | ||||||
| Working | -40℃～+60℃ | -25℃～+55℃ | ||||||
| temperature | ||||||||
| Storage | -45℃～+70℃ | -40℃～+65℃ | ||||||
| temperature | ||||||||
| Size (mm) | 331*266*166 | 431*266*166 | 440*750*178（4U） | |||||
| Weight (kg) | 12 | 15 | 19 | 21 | 25 | 48 | 48 | |
