Inverter charger pure sine wave 6000W 24VDC 220VAC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HongKong, ShangHai, ShenZhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,EXW |
| HS Code: | 8504403090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | HongKong,ShangHai,ShenZhen |
Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of Ups Inverter、off grid solar inverter、RV converter charger in China.
What’s Inverter Charger? --A combination of an inverter and a charge controller,One product, two uses. Finding reliable & safe inverter charger? Maybe you can consider this kind of Low Frequency Inverter Charger.

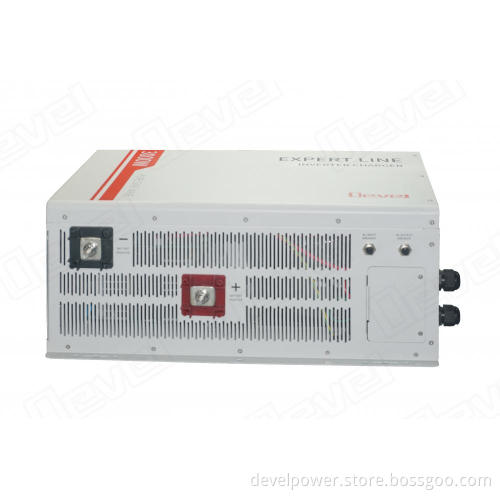

Inverter Charger 6000W 24VDC 220VAC, beautiful design & reliable craftsmanship,is suitable for cars, boats, yachts, etc. Expert Line--Expert at your home!
Features
● Auto switch 4 FUN: DC to AC , AC bypass, AC charger and UPS
●Start Auto restart while AC is recovering, Dry contact: out no AC signal to other device
●Pure sine wave output ,input & output fully isolation Three-gear switch
●Includes 4-stage AC battery charger, charging current up to 90A
●Efficiency can reach above 88%, energy saving mode, extend the working hours of battery
●Can be paired with electric, diesel hybrid power supply
●Tolerance3 times rated power start, the carrying capacity of excellence
●Advanced microprocessor control system design
●Input polarity/UV/OV/OS/OL/OT protections
●Remote control RJ45 or RS-232 communication interface
(optional)
| Models | SPT6000-124 | SPT6000-148 | SPT6000-224 | SPT6000-248 | ||
| Output Power | 6000W | |||||
| Surge Power | 18000W | |||||
| DC Input Voltage | 24VDC | 48VDC | 24VDC | 48VDC | ||
| Output Voltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||||
| Output Frequency | 50/60Hz ±0.5% | |||||
| Output Waveform | True sine wave（THD<5%） | |||||
| Power Factor | 0.1~1 | |||||
| Efficiency | 86% | 88% | 87% | 90% | ||
| No Load Power | ＜105W（Power saving mode） | |||||
| Transfer Time | ＜8 ms | |||||
| AC Range | 90~135VAC/190~245VAC | |||||
| Voltage Range | 20.0~31.0VDC | 42.0~60.0VDC | 20.0~31.0VDC | 42.0~60.0VDC | ||
| Charge Current | 75A | 45A | 75A | 50A | ||
| Fault Indication | LED Red | |||||
| Remote Control | RJ45:PTM-10 or PTM-12 | |||||
| Safety | UL458 | LVD（EN60950) | ||||
| EMC | FCC Part15 ClassA | CE (EN55022:2006+A1:2007) | ||||
| Operating Temp | -20~50℃ | |||||
| Working Humidity | 20~90%RH | |||||
| Storage Temp | -30~70℃ | |||||
| Cooling | Automatically controlled cooling fan | |||||
| Weight (kg) | 36 | |||||
| Size (mm) | 644*256*187(L*W*H) | |||||
| Application | Vehicle,Yacht,Solar power systems,Portable equipments,Power tools,Home and Office appliances | |||||
