Inverter charger for 50 amp rv 1500W
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HongKong, ShangHai, ShenZhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,EXW |
| HS Code: | 8504403090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | HongKong,ShangHai,ShenZhen |
Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of solar inverter with battery、Ups Inverter、solar power inverter.
Inverter Charger(A combination of an inverter and a charge controller) can power the load and charge the battery. Are you finding reliable & suitable & safe inverter charger for your big house? This kind of Low Frequency Inverter Charger can be a wonderful choice.

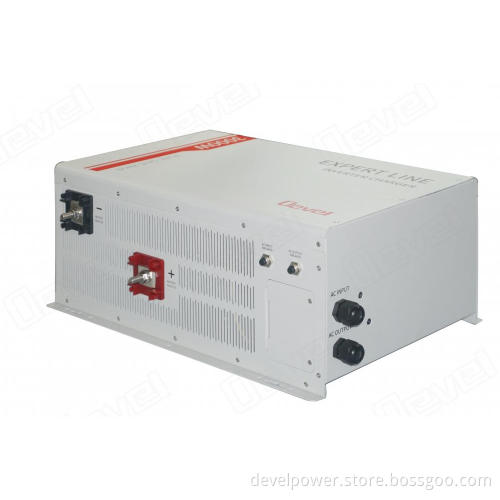

Inverter Charger 1500W 24VDC 220VAC, with beautiful design & long service life & reliable craftsmanship,is suitable for offices, cars, boats, yachts, etc. Devel -- Trustworthy partner for your good life!
Features
● Auto switch 4 FUN: DC to AC , AC bypass, AC charger and UPS
●Start Auto restart while AC is recovering, Dry contact: out no AC signal to other device
●Pure sine wave output ,input & output fully isolation Three-gear switch
●Includes 4-stage AC battery charger, charging current up to 90A
●Efficiency can reach above 88%, energy saving mode, extend the working hours of battery
●Can be paired with electric, diesel hybrid power supply
●Tolerance3 times rated power start, the carrying capacity of excellence
●Advanced microprocessor control system design
●Input polarity/UV/OV/OS/OL/OT protections
●Remote control RJ45 or RS-232 communication interface
(optional)
| Models | SPT1500-112 | SPT1500-124 | SPT1500-148 | SPT1500-212 | SPT1500-224 | SPT1500-248 |
| Output Power | 1500W | |||||
| Surge Power | 4500W | |||||
| DC Input Voltage | 12VDC | 24VDC | 48VDC | 12VDC | 24VDC | 48VDC |
| Output Voltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||||
| Output Frequency | 50/60Hz ±0.5% | |||||
| Output Waveform | True sine wave（THD<5%） | |||||
| Power Factor | 0.1~1 | |||||
| Efficiency | 85% | 86% | 88% | 86% | 87% | 90% |
| No Load Power | ＜15W（Power saving mode） | |||||
| Transfer Time | ＜8 ms | |||||
| AC Range | 90~135VAC/190~245VAC | |||||
| Voltage Range | 10.0~16.0VDC | 20.0~31.0VDC | 42.0~60.0VDC | 10.0~16.0VDC | 20.0~31.0VDC | 42.0~60.0VDC |
| Charge Current | 50A | 25A | 15A | 45A | 25A | 15A |
| Fault Indication | LED Red | |||||
| Remote Control | RJ45:PTM-10 or PTM-12 | |||||
| Safety | UL458 | LVD（EN60950) | ||||
| EMC | FCC Part15 ClassA | CE (EN55022:2006+A1:2007) | ||||
| Operating Temp | -20~50℃ | |||||
| Working Humidity | 20~90%RH | |||||
| Storage Temp | -30~70℃ | |||||
| Cooling | Automatically controlled cooling fan | |||||
| Weight (kg) | 15 | |||||
| Size (mm) | 514*256*187(L*W*H) | |||||
| Application | Vehicle,Yacht,Solar power systems,Portable equipments,Power tools,Home and Office appliances | |||||
