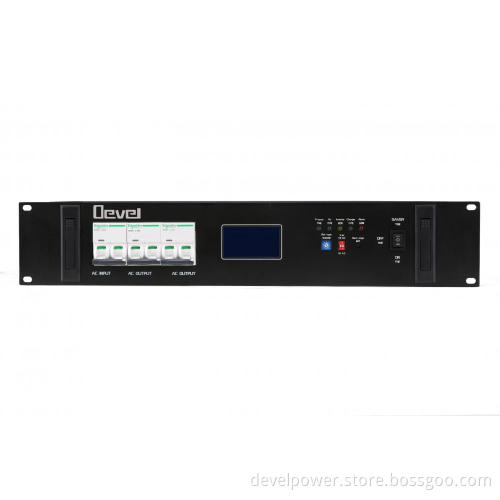

5000W Low Frequency Inverter Charger 24VDC 220VAC
  • 5000W Low Frequency Inverter Charger 24VDC 220VAC
5000W Low Frequency Inverter Charger 24VDC 220VAC

5000W Low Frequency Inverter Charger 24VDC 220VAC

Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Port:
HongKong, ShangHai, ShenZhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB,CFR,EXW
HS Code: 8504403090
Transportation: Ocean,Land,Air,Express
Port: HongKong,ShangHai,ShenZhen
Product Description
Product Description

Devel -- Always Power Ready

Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of pure sine wave inverterinverter with battery for homeDC To AC Converter.

Why choose develpower?

Perfect after-sales service, give you worry-free life & happy life.

What can you do with a power inverter?

You can choose to store or release electricity at different time periods to save on electricity bills(economic friendly).

Considering a portable power inverter? This kind of high frequency inverter maybe a great choice for you.

What is the difference between an inverter and an inverter charger?

An inverter is a device that converts DC (battery) power into AC power and then distributes it to electrical appliances connected to it. An inverter/charger performs the same function, except that it is coupled to an AC source to continually charge the attached battery banks when AC power is available.

5000w Low Frequency Inverter Charger 24vdc 220vac, this kind of Low Frequency Inverter,which is made from high-quality materials,is suitable for offices, cars, boats, yachts, etc.

Devel -- Create a better life for you!



Features

 ● Auto switch 4 FUN: DC to AC , AC bypass, AC charger and UPS
  ● Built-in AC charger ,70A max, adjustable
  ● Pure sine wave output ,input & output fully isolation
  ● 5 LED display working, Digital LCD display data info
 ● Input : Utility AC or  Generator etc
 ● Start Auto restart while AC is recovering (optional)
  ● Output AVR: stabilized AC voltage RMS (optional)
  ● Excellent loads with 3*rated start power
  ● Input polarity/UVP/OVP/OSP/OLP/OTP
  ● AC with Circular Electric Connector ,Hot Plugging DC Connectors

  ● Communication Port:RS-232





 Models DPR5000-124 DPR5000-148 DPR5000-224 DPR5000-248
 Output Power 5000W
 Surge Power 15000W
 DC Input Voltage 24VDC 48VDC 24VDC 48VDC
 Output Voltage 100/110/120VAC±5% 220/230/240VAC±3%
 Output Frequency 50/60Hz±0.5%
 Output Waveform True sine waveTHD<3%
 Power Factor 0.1~1
 Efficiency 89% 91% 90% 93%
 No Load Power 10WPower saving mode
 Transfer Time 8 ms
 AC Range 184-253VAC  (176-276VAC) /154-253VAC  (150-276VAC)
 AVR Output (optional) 120VAC±10% 230VAC±10%
 DC Range 10.0~15.5VDC,*2 for 24VDC, *4 for 48VDC
 Charge Current 70A 35A 70A 40A
 Safety UL458 LVDEN60950)
 EMC FCC Part15  ClassA
 Operating Temp -20~50℃
 Working Humidity 20~90%RH
 Storage Temp -30~70℃
 Cooling Automatically controlled cooling fan
 Weight (kg) 40
 Size (mm) 19inch,4U Standard cabinet,482*400*176mm L*W*H)
 Application Special Vechile,Yacht,airborne ,Communication field  etc.
