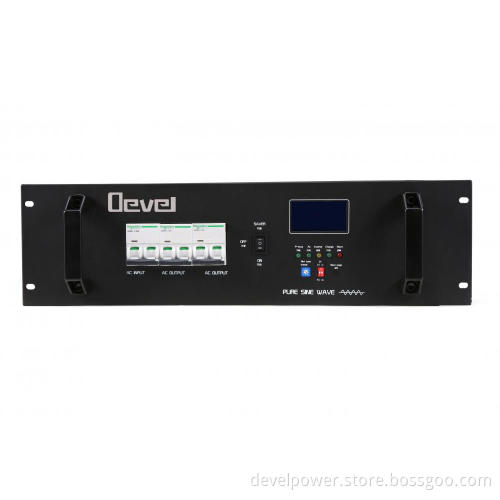

4000W Low Frequency Inverter Charger 48VDC 220VAC
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- HongKong, ShangHai, ShenZhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,EXW |
| HS Code: | 8504403090 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | HongKong,ShangHai,ShenZhen |
Devel -- Always Power Ready
Suzhou Develpower Co.,Ltd, founded in 2010, is a professional manufacturer of solar inverter with battery、inverter for home、inverter dc to ac.
Why choose develpower?
Perfect after-sales service, give you worry-free life & happy life.
What can you do with a power inverter?
In the event of a power outage,your refrigerator and important appliances are safe(safety).
Considering a portable power inverter? This kind of high frequency inverter maybe a great choice for you.
What is the difference between an inverter and an inverter charger?
An inverter is a device that converts DC (battery) power into AC power and then distributes it to electrical appliances connected to it. An inverter/charger performs the same function, except that it is coupled to an AC source to continually charge the attached battery banks when AC power is available.
4000w Low Frequency Inverter Charger 48vdc 220vac, this kind of Low Frequency Inverter,with reliable craftsmanship,is your good helper in offices, cars, boats, yachts, etc.
Devel -- Create a better life for you!
Features
● Auto switch 4 FUN: DC to AC , AC bypass, AC charger and UPS
● Built-in AC charger ,70A max, adjustable
● Pure sine wave output ,input & output fully isolation
● 5 LED display working, Digital LCD display data info
● Input : Utility AC or Generator etc
● Start Auto restart while AC is recovering (optional)
● Output AVR: stabilized AC voltage RMS (optional)
● Excellent loads with 3*rated start power
● Input polarity/UVP/OVP/OSP/OLP/OTP
● AC with Circular Electric Connector ,Hot Plugging DC Connectors
● Communication Port:RS-232
| Models | DPR4000-124 | DPR4000-148 | DPR4000-224 | DPR4000-248 |
| Output Power | 4000W | |||
| Surge Power | 12000W | |||
| DC Input Voltage | 24VDC | 48VDC | 24VDC | 48VDC |
| Output Voltage | 100/110/120VAC±5% | 220/230/240VAC±3% | ||
| Output Frequency | 50/60Hz±0.5% | |||
| Output Waveform | True sine wave（THD<3%） | |||
| Power Factor | 0.1~1 | |||
| Efficiency | 89% | 91% | 90% | 93% |
| No Load Power | ＜10W（Power saving mode） | |||
| Transfer Time | ＜8 ms | |||
| AC Range | 184-253VAC (176-276VAC) /154-253VAC (150-276VAC) | |||
| AVR Output (optional) | 120VAC±10% | 230VAC±10% | ||
| DC Range | 10.0~15.5VDC,*2 for 24VDC, *4 for 48VDC | |||
| Charge Current | 50A | 30A | 65A | 35A |
| Safety | UL458 | LVD（EN60950) | ||
| EMC | FCC Part15 ClassA | |||
| Operating Temp | -20~50℃ | |||
| Working Humidity | 20~90%RH | |||
| Storage Temp | -30~70℃ | |||
| Cooling | Automatically controlled cooling fan | |||
| Weight (kg) | 38 | |||
| Size (mm) | 19inch,4U Standard cabinet,482*400*176mm （L*W*H) | |||
| Application | Special Vechile,Yacht,airborne ,Communication field etc. | |||
