JK Series Vacuum Extruder

1. Stability

2. Competitive price

3. Lower maintaining

It’s a key device to make clay brick.

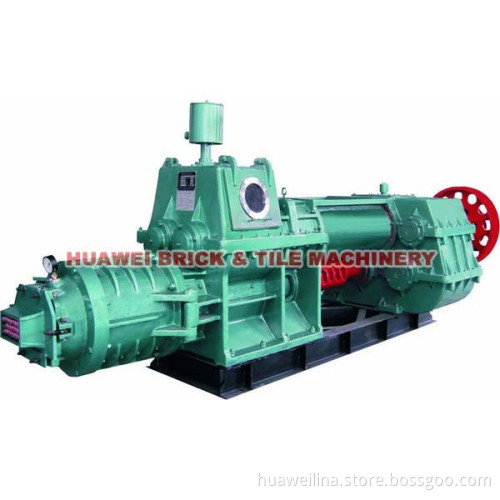

JK Series Compact Double Stage Vacuum Extruder/Clay Brick Machine

Product characteristic of clay brick machine

Its reamer axle deploys automatic core adjustment. The upper axle is an arm-dependent structure. The casing is weld with entire steel sheet has supper entire rigidity. The gear of the gear box lubricated via the gear pump. The machine features in convenient, intense, compact structure and high vacuum degree. It is applicable for the production of high aperture rate hollow brick, high adulteration fly ash agglomeration brick and the production with gangue, shale, low plasticity clay etc.

JKY75-4.0 Clay Brick Machine/Double-Stage Vacuum Extruder

Main Technical Parameters:

Item	Unit of measurement	JKY75-4.0
Production capacity(solid brick)	Standard brick per hour	13000~22000pcs/h
Maximum extrusion pressure	Mpa	4.0
Vacuum degree	Mpa	≤-0.092
Overall dimension	mm	5081×5385×2645
Power	kw	250/90/7.5×2
Weight	kg	26000
