hologram master shooting system
Specification:
Type: Lithography machine
Model Number: YXKP-400
Usage: Label Printer
Color & Page: Multicolor, Dot matrix
Main Parameters:
|
Model |
YXKP-400 |
|
Shooting area |
(X/Y)400*400(mm) |
|
Laser source |
UV high-power pump laser |
|
Shape of pixel |
Square, round and other |
|
Mode of operation |
PC interface |
|
Precision of allocation |
±2µm(±5µm) |
|
Precision of shooting(standard) |
300-1270dpi |
|
Precision of shooting(alternative) |
MAX:2540dpi |
|
Shooting speed |
40-1000dots/Sec. |
|
Controlling software |
YXHK-pixelmak6.2 |
|
Size(L/W/H) |
2400*1200*1600(mm) |
|
Weight |
800kg |
|
Power |
220V±10% 50/60HZ 3000W |
|
Temperature |
20±2 |
|
Humidity |
55%-65% |
Main Parameters:
Dot-matrix holograms can be used for:
Security Badges, ID Cards, Product Authentication, Legal Documents
Boxes, Gift wrap, Packaging
Letterhead, Envelopes, Business Cards
Direct Mail, Point of Purchase Displays, Magazine Inserts
Children`s Toys, Novelties, Promotional Items
Functions:
To make Dot-matrix hologram movement effect onto small hologram master. Usually, we make small hologram master unit and recombine it into big master. Dot-matrix master shooting machine has 3 different types in resolution (800 DPI, 1200 DPI, 2400 DPI) according to different customer's requirements.
Configuration:
Dot-matrix hologram master shooting machine composed of optical table, laser, Programmable controller, accurate platform, optic bridge, computer and software.
Overall view

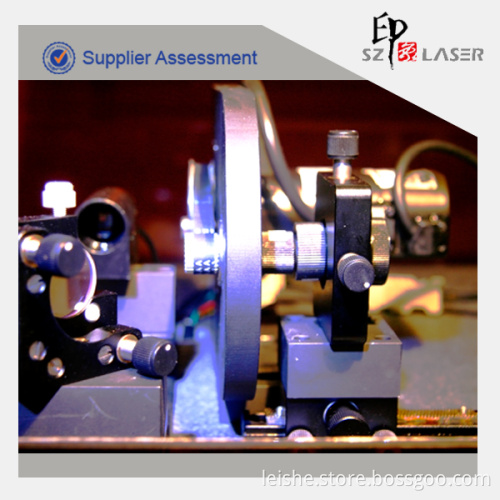

Components view
*******************************************************************************
We are a Chinese professional Company in producing hologram security products to protect your brand and commodities. We have succeeded in supplying hologram overlay for Olympic Games and Asian Games.Bellow is our main products:
1. Supply hologram related product such as: hologram security label/sticker, hologram tape, hologram package, hologram overlay/pouch hologram metal label etc.
2. Produce hologram master. Our hologram master not only have good brightness, but also have all the features like Multi channel effect, Kinetic effect and Guilloche Pattern,2D/3D,Switch effect, Laser Readable Image, Gradient effect, Micro text, Lens effect, relief effect, True color image, Full 3D,White effect etc. The size range is within 800mm X 1200mm.
3. Provide hologram related machines like hologram dot matrix machine, recombining machine, electroforming system, embossing machine, glue spreading system, Automatic die-cutting machine. And more important, we can produce these equipments and machines according to our clients` requests.
*******************************************************************************
