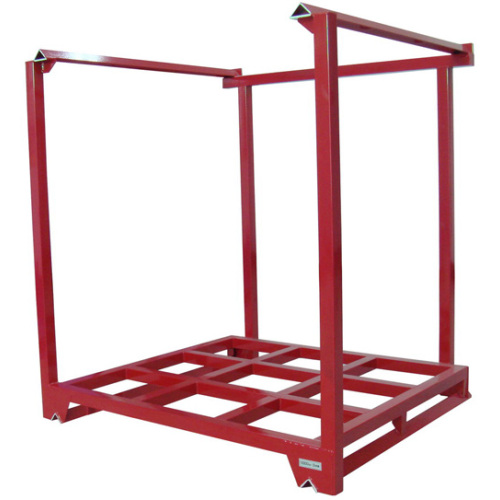

Stack Rack with Triangle Railways
Stackable to save space, security and durability is garuanteed by Triangle railways. suitable for seasonable production.
|
Style A |
Overall Size |
Internal Size |
Goods Size |
Load(kg) |
Stack Layers |
|
Model |
W*D*H(mm) |
W*D*H(mm) |
W*D*H(mm) |
||
|
NA131212 |
1300×1200×1200 |
1200×1150×1000 |
1100×1100×900 |
1000 |
3 |
|
NA131214 |
1300×1200×1400 |
1200×1150×1200 |
1100×1100×1100 |
1000 |
3 |
|
NA140912 |
1400×900×1200 |
1300×850×1000 |
1200×800×900 |
1000 |
3 |
|
NA140914 |
1400×900×1400 |
1300×850×1200 |
1200×800×1100 |
1000 |
3 |
|
NA141112 |
1400×1100×1200 |
1300×1050×1000 |
1200×1000×900 |
1000 |
3 |
|
NA141114 |
1400×1100×1400 |
1300×1050×1200 |
1200×1000×1100 |
1000 |
3 |
|
NA141312 |
1400×1300×1200 |
1300×1250×1000 |
1200×1200×900 |
1000 |
3 |
|
NA141314 |
1400×1300×1400 |
1300×1250×1200 |
1200×1200×1100 |
1000 |
3 |
Stack Rack A Description:
1.Adopting stacking to save place
2.The load of railways is distributed on 4 uprights
3.Adopting special method to overlap 82°railways on 90°ones when stacking,
this special structure have excellent function for anti-shake
such as earthquake,the more load the more stable
4.Full-welded structure,permanent durability
5.No limit to the size of pallet ,can store various goods from different suppliers
6.Put the goods directly on rack,conveying conveniently by forklift without pallet
7.Various style with different accessories,performance different practical function
8.Customised stacking rack is availble
|
Pallet Model |
Overall Size |
Internal Size |
Load(kg) |
|
W*D*H(mm) |
W*D*H(mm) |
||
|
PA1312 |
1300×1200×140 |
1100×1100 |
1000 |
|
PA1209 |
1200×900×140 |
1000×800 |
1000 |
|
PA1409 |
1400×900×140 |
1200×800 |
1000 |
|
PA1411 |
1400×1100×140 |
1200×1000 |
1000 |
|
PA1413 |
1400×1300×140 |
1200×1200 |
1000 |
Description:
Used on the top of the stackable rack,using space effectivly
