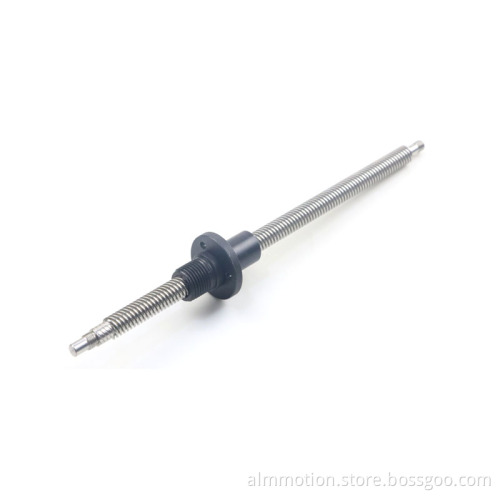

Lead 10mm diameter 10mm spindle Tr10X10
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 30000pcs /month |
| Supply Ability: | 30000 pcs/month |
| Payment Type: | T/T,D/P,Money Gram,Paypal,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU |
| Certificate: | ISO9001:2015 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
Features of transmision screw thread forming way:
Lead Screw Thread cutting
It is a traditional way of thread forming.Threads are cut with the (CNC)lathe for accuracy and for versatility. Both
inch and metric screw threads can be cut using the (CNC) lathe. Compared to thread rolling, cutting process is
used when full thread depth is required, when the quantity is small, when the blank is not very accurate, when
threading up to a shoulder is required, when threading a tapered thread, or when the material is brittle.
Thread grinding
Thread grinding is done on a grinding machine using specially dressed grinding wheels matching the shape of the
threads. The process is usually used to produce accurate threads or threads in hardened materials;
Thread rolling
The cold working that threads receive during the rolling process strengthens them in tension, shear and fatigue. A
Rolled Thread will increase the thread strength by a minimum of 30% verses a cut thread.
T ISO Trapezoidal Thread Din103
For transmission and position adjustment, widely used in the mechanical industry.
H High-helix Screws
A high-helix leadscrew, speedy multi-start lead screw, or steep lead screw features a high pitch that is used to transform a smaller radial movement into a large axial movement.
M ISO Metric Thread (60° )
The most common form of thread used for fastening and precision transmission.
A ACME Thread (29° )
Inch threads can also be used for fastening connections, but not for high accuracy.
R Knuckle Thread
With the same arc thread as ball screw, the transmission is smoother.
G Gothic thread
Gothic double arc thread, offering the advantages of ball screw, is similar a new kind of lead screw.
X Self-reversing thread
A screw that makes the slide block reciprocate without changing the rotation direction of the spindle.
