MTF Linear Motors advantage:

Small size - Fewer parts to design and assemble;

Cost savings – especially in long travel applications with the right coil unit maintenance-free – contact-free operation and virtually wear-free;

High thrust density - increased throughput;

Low cogging effect - smooth movement and positioning;

Multiple coil units can be placed in a single magnetic plate and can be operated independently.

How Non Magnetic Track linear motor works?

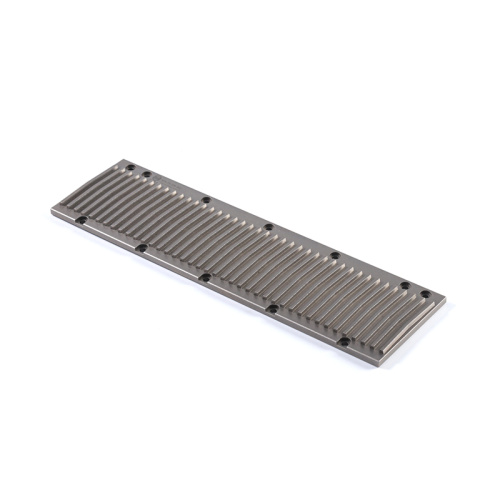

About our MTF Linear Motors working principle, the most basic electromagnetic theory is still unchanged, but it adopts the latest magnetic field modulation theory, self-modulated ferroalloy stator. We transfer the magnet supposed to be laid on the stator to the mover, so that the coil and magnet are integrated on the mover.The synonym-shaped design on the stator provides a magnetic circuit that essentially interacts with two magnetic fields to generate thrust.

When the mover moves, the corresponding magnet also moves with it. That is, the activist will have an excitation magnet with a movement, magnet movement to which part, which part produces electromagnetic force. Thus, like the rotating permanent magnet synchronous motor, the magnet utilization rate reaches 100%, and no extra magnets are exposed. The design of this structure overcomes two shortcomings of conventional linear motors.Namely, the large amount of magnets and the low utilization rate. This greatly reduces the cost of linear motors and improves safety.

Linear motor actuator application:

Ic Package,Testing Of Semiconductor Equipments
Ic Patching,Photovoltaic Panel Manufacturing
Laser Cutting Equipments,
Medical Apparatus And Instruments,Machine Tools,Optical Equipments,Display Panel Manufacturing.

Features and Performance

Product categories of advanced Linear Motor Module,as the professional linear motor and encoder manufacturer from China,we provide competitive linear motor modules.Self-developed new technology magnetic track free linear motor.Manufacturing and wholesale high quality Single Axis Robots.ALM has the perfect after-sales service and technical support. Look forward to your cooperation!
