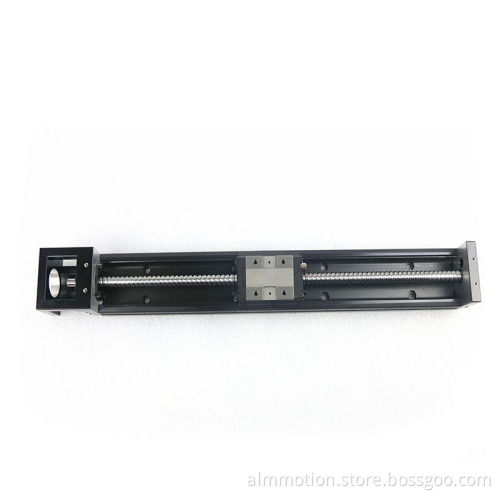

Width 86mm pitch 5mm linear ball screw slide
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 sets/month |
| Supply Ability: | 10000 sets/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,CPT,DDU |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |
KK8605 ball screw driven linear actuator is of high precision and high rigidity: Through the deformation analysis of the contact position of the steel ball by the load in each direction, it is known that this precision linear module has the characteristics of high precision and high rigidity. The optimal structural design is based on the finite element method to obtain the optimal rigidity and weight ratio.
Equivalent Load
The gothic arch contact design sustains load from all directions and offers high rigidity and accuracy.
〇 Aluminum cover and bellow:contamination protection
〇 Motor adaptor flange: connection for different types of motors
〇 Limit switchs: starting point, positioning and other safety matters
KK linear module specifications：
