Width 20mm pitch 1mm Compact linear micro module
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10000 sets/month |
| Supply Ability: | 10000 sets/month |
| Payment Type: | L/C,T/T,Paypal |
| Incoterm: | FOB,CIF,EXW,FCA,CPT,DDU |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shanghai |

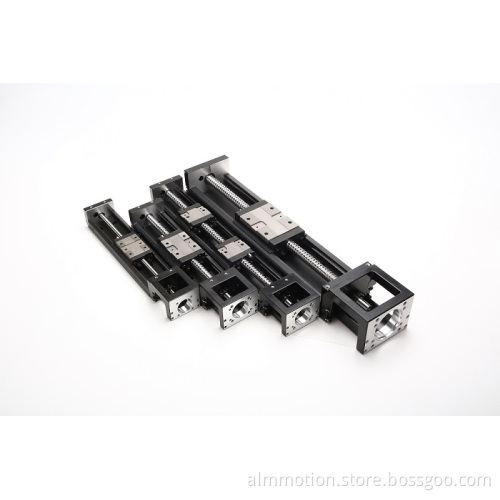

KK single axis robot key feature is small size and light weight: U-shaped track can be used as a guide rail, but also use the platform structure, greatly reduce the installation volume, and design the optimized structure with the finite element method to obtain the best rigidity and weight ratio. Smooth positioning movements with low torque and low inertia reduce energy consumption.
Accessories of KK Single Axis Robot are also supported for specific demands, such as an aluminum cover, bellows,motor adaptor flange and limit switchs.
〇 Aluminum cover and bellow： contamination protection
〇 Motor adaptor flange: connection for different types of motors
〇 Limit switchs： starting point, positioning and other safety matters
High Stiffness:
Using finite element analysis on the U-shaped cross section allows the volume and rigidity to be made balanced,
therefore, a high rigidity rail, compact design and a light weight design are also accomplished simultaneously.
Equivalent Load
The gothic arch contact design sustains load from all directions and offers high rigidity and accuracy.
KK linear module specifications：
Product categories of Single Axis Robots,high quality MTF Linear Motors.We designs and produces high technology products for Linear Motor Application field.
