Right and Left Hand Thread 1002 Ball Screw
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 15000 PCS/Month |
| Supply Ability: | 15000 PCS/Month |
| Payment Type: | L/C,D/P,T/T,D/A,Paypal |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU |
| HS Code: | 8483401000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | shanghai |

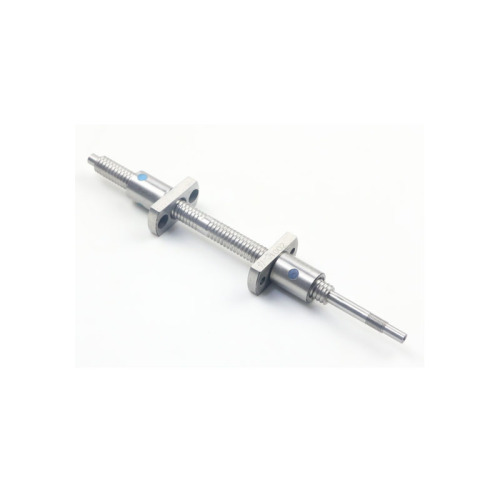

Hot Sell Right and Left Hand Thread 1002 Miniature Ball Screw.Bi-directional Ball Screw is an ideal product for transforming rotational motion into linear motion or linear motion into rotational motion.The ball screw is mainly composed of screws,nuts and balls.Its main function is to convert rotary motion into linear motion,which is the further extension and development of the lead screw.The important significance of this development is to slide the screw into rolling and reduce friction.Because of its low friction resistance,the ball screw is widely used in various industrial equipment and precision instruments.
| Material | Gcr15 or 9cr18 |
| Accuracy grade | C3,C5,C7 |
| MOQ |
1 piece available for test |
| Fast delivery |
10~30days |
| Packing |
Carton+Plastic bag + wooden box or according to customers' demands |
|
Other models |
0401, 0501, 0502, 0601, 0602, 0801, 0802, 0803, 0804, 0805 1001, 1002, 1003, 1004, 1201, 1202, 1203, 1204, 1205, 1210, 1402, 1403, 1404, 1405, 1602, 1603, 1604, 1605, 1608, 1610, 2002, 2003, 2004, 2005, 2006, 2010, 2020, 2502, 2503, 2504, 2505, 2510, 2512, 2525, 3205, 3206, 3208, 3210, 3212, 3216, 4005, 4008, 4010, 4012, 4016, 5005, 5010, 5012, 5016, 5020, 6310, 6312, 6316, 6320, 8010, 8016, 8020,etc |
| Mating parts | Nut housing,ball screw support BK,BF,EK,EF,FK,FF,end maching service is available |
| Certificate |
ISO9001,CE Certificated and RoHS Compliance |
Bi-directional Ball Screw Parameter
Ball Screw Application
Semiconductor Equipments,humanoid robots,precision equipment,industrial machinery,defense industry,power tools,medical industry,passenger cars,wire harness cable processing,laser machine,3D printer,custom automation equipment,linear servo actuator,3C Intelligent Manufacturing,new energy automobile etc.
Our Advantages
Ball Screw Advantages
1.High transfer efficiency
Balls with free motion in the ball screw assembly transfer the force and motion between screw and nut.This transfer mode replaces the traditional transfer mode that screw shaft and nut effect directly.Therefore the minimum rolling friction takes place of the sliding friction of traditional screw.The transfer efficiency of ALM ball screw will reach more than 90%.The drive torque of transfer unit reduces to 1/3 of sliding screw.This also greatly reduces the heat release.
2.High positioning accuracy
ALM Ball screw has low heat release,small temperature increase and with actions of pre-stretch and eliminating axial clearance in the process,which make ball screw have high positioning accuracy and repeating positioning accuracy.Positioning deviation can be 0.002mm per 300mm travel.
3.Clean and smooth,excellent surface finish
ALM Ball screw has no sticky friction.ISO management systems ensure strict performance during production and experienced talent staff combing precision machine and optimized process flow causing super quality smooth ball screw.Each ball screw will go through ultrasonic before assembly.
4.Long service life
Since the strict control of ball screw groove shapes,surface hardness and material selection,the actual life of ALM ball screw is much longer.
5.Good synchronization
Due to smooth running,axial clearance elimination and consistency in manufacturing,several sets of ball screw assembly can drive the same unit or several identical parts to obtain the good synchronization.
