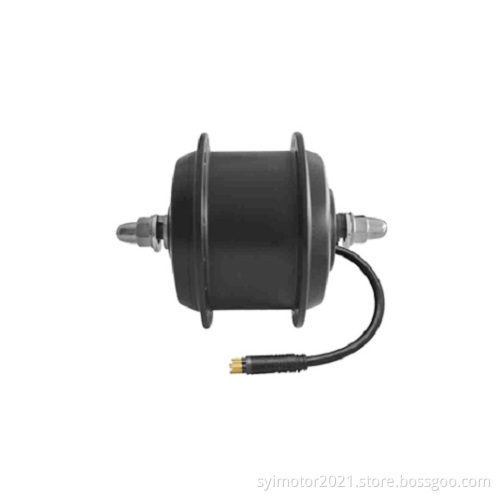

DGWQ1 is the small light front motor, it provides a road bike to become a folding bike, wheel size of 16in~24in, efficiency of 80%.

Main parameter of DGWQ1-Front Drive Motor
specification parameter
Driving position Front
Wheel size 16in-24in
Spoke 13G,36holes
hole diameter 3.2-3.4mm
Rated power 180W~230W
Rated voltage 24V~36V
Max.torque ≥20N.m
Efficiency ≥80％
Cable side Right
Number of magnet 14
Reduction gear ratio 1:11.66
Installation dimension 100mm
Inside speed sensor 1~6
Hall sensor With/Without
Brake V-brake
Classification of waterproof IPX5
Weight 2.0Kg

As a professional china 250w dc motor supplier, we provide china dc hub motor, shengyi dgw07, portable bike motor, portable electric bike motor and etc. Want to know more? Please contact us.
