DGW23ND-Front Drive Motor

$200.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Block 29, Chuangtou Industrial Park, Suzhou Industrial Park, JiangSu Province, China.
Productivity:	1500000 pcs/year
Supply Ability:	1500000 pcs/year
Payment Type:	T/T,L/C

Product Description

This motor is used for urban cycling, it is small in size and light in weight, but it provides high power.

Main parameter of DGW23ND-Front Drive Motor :

specification parameter
Driving position Front
Wheel size 16in-28in
Spoke 36holes 12G/13G
Rated power 250W~300W
Rated voltage 36V~48V
Max.torque ≥40N.m
Efficiency ≥80％
Cable side Right
Number of magnet 16
Reduction gear ratio 1:7.5
Installation dimension 101mm
Inside speed sensor 1~6
Hall sensor With/Without
Brake Disc brake/v-brake
Classification of waterproof IPX5
Weight 2.4Kg

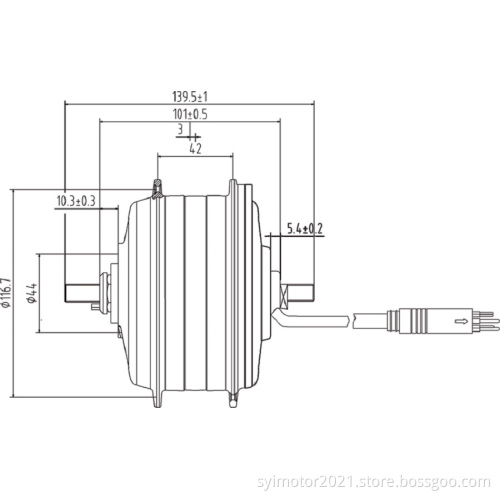

Drawing of DGW23ND-Front Drive Motor ：

Shengyi is a professoinal hub motor company, we provide 300w hub motor, china hub motor and etc. Want to know more? Please contact us.
