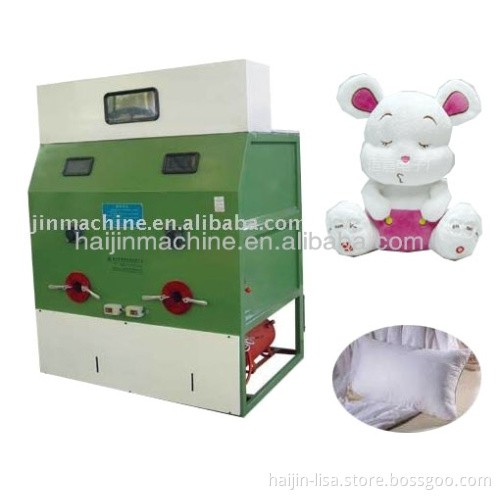

Multi-Function Fiber Filling Machine

 Automatic Fiber Filling machine is also called as stuffing machine.

 1.Our company develops the new HJCM-1250 stuffing machine based on technology introduction from Taiwan and South Korean.Its filling efficiency is 15-20times quicker than handmade and it is available for long fiber and short fiber,0.7D-15D cotton,PP cotton,Scrap materials,plastic granules,buckwheat,etc.,whcih makes rag dolls,sofa,cushions and bedding appliances more fluey,softer,more flexible and more comfortable.

2.The Company also make customized production according to the requirements of customers, e.g. the foam granule machine, which utilize the principle of air flush and sucking to allow two discharging ports to fill foam granules into ETS, and the third suction port to suck foam granules from the ETS, and inspect whether the toy is complete and there is any air leakage. The ports are provided with complete functions to satisfy customers requirements. With customer services as the center, the Company also chooses coating colors for machine baking finish as per preferences of the customers.

Technical Parameter:

• Size:1580*1200*1960mm
•  Power: 1.5KW
• Output: 1.5KG-3KG/min
• Rated Voltage: 380V 50HZ
• Net Weight: 550kg

 CE certificate

High efficency and Low cost
