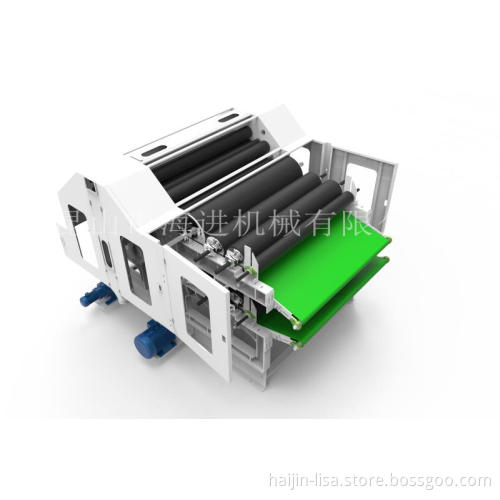

Double doff carding Machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Packaging & Shipping

wooden case

Product Description

Applicable to polyester, polypropylene, polyvinyl alcohol, chemical fibers such as bicomponent fibers to form a network by high-speed carding.

Cylinder,Doff,Worker,Stripper processed accurately.

Installed a condenser in the front of the Doff, Output cotton is controlled by frequency conversion.

The Pin-cloth choose famous brand.

Cutting die and Stripping Cotton.

Feeder: Equipped with anti-metal protection device, can detect metal and self-stopping alarm, reversing function.

The Main Bearing without Cylinder, The main motor of the cylinder with Variable Frequency and adjustable speed.

Roller into the cotton with Variable Frequency Control.

Cylinder,Doff is casting part, and the others roller is made by seamless steel pipe.

The roundness of the roller not more than 0.05mm, to ensure dynamic and static balance.

Carding machine:(Bedding production line, Quilt production line)

High working speed, high quality, new low price!

Features and Functions:

1.Purpose: Applicable to the artificail fiber carding

2.Spec: 1520MM 1820MM 2020MM 2220MM 2520mm

3.Mesh-out speed: 20-55M/MIN

4.Doff: φ535MMX2

5.Silling: φ1020MMX1

6.Cotton strpping: Chopping, Pulling

7.General Power: 10.5~15.4KW

Cylinder Radial Running: ≤0.05mm

Cylinder Diameter: φ850mm

Doff Diameter: φ850mm

Worker Diameter: φ130mm

Stripper Diameter:φ79mm

Lickerin Diameter: φ241mm

Output: 160KG/H

Power: Cylinder 7.5KW Doff 1.5KW Feeding 0.75 KW

TLCD2-Single cylinder Double Doff cotton carding Machine
