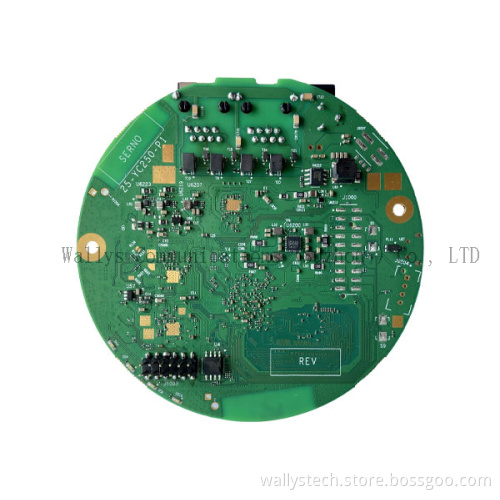

DR6000 IPQ6000 802.11ax 2x2 2.4GHz&5GHz 802.11ax 2x2 2.4G 2x2 5G 1.7Gbps

Qualcomm-Atheros IPQ6000

Quad-core ARM 64 bit A53s 1.2GHz processor

2.4GHz, 2x2 MU-MIMO OFDMA Technology, up to 573Mbps

5GHz, 2x2 MU-MIMO OFDMA Technology, up to 1201Mbps

2 on board radios (Dual Band Concurrent Radio)

Supports Dynamic Frequency Selection (DFS)

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	12	V
Operating Temperature Range	-20 to +70	ºC
Storage Temperature Range	-45 to +90	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	Qualcomm-Atheros IPQ6010
CPU Frequency	Quad-core ARM 64 bit A53 1.2GHz processor
System Memory	DDR3L 512MB 16-bit interface
Nand Flash	128MB
NOR Flash	16MB
Ethernet Port	2x 1Gbps Ethernet Ports
DC Jack Input	1x DC Jack Connector: 12V
Power Consumption(Board Only)	1TD
On Board Radio	2 radios (Dual band concurrent radio)
Wireless	On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 20dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 2x U.FL Connectors, diplexer allows dual band concurrent operation
Frequency Range	2.412~2.472GHz, 5.150~5.825GHz
2.4GHz Data Rate	2x2 MU-MIMO OFDMA Technology, up to 573Mbps
5GHz Data Rate	2x2 MU-MIMO OFDMA Technology, up to 1201Mbps
Modulation Techniques	OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM,1024QAM
LED	4x LED Indicators
USB /Header	1x MicroUSB 2.0 Port
Serial Port	1x Serial Interface 12 Pin Connectors
Certification	TBD
Humidity	Operating: 5% to 95% (non-condensing) Storage: Max. 90% (non-condensing)
Temperature Range	Operating: TBD Storage: -40ºC to 90ºC
Dimension (Diameter x Height)	100mm x 23.5mm (Without Heatsink)
