DR-AP342 1x10/100/1000Mbps Gigabit Ethernet Port high power wifi6 802.11ac

Wallys Communications (Suzhou) Co LTD (web:wallystech  com)

With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards
products:
wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless

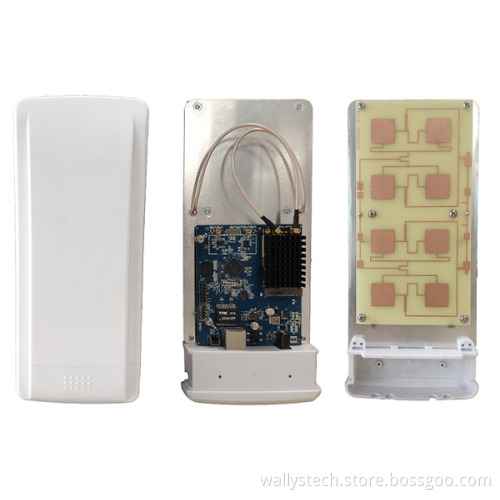

DR-AP342

1x10/100/1000Mbps Gigabit Ethernet Port high power

Features

Featuring with industrial-grade Atheros’s AR9342(533 MHz) chipset

Integrated with 2x 2 5G high power (up to 30dBm aggregate ) Radio Card

5.180GHz to 5.825GHz Frequency Range

1x10/100/1000Mbps Gigabit Ethernet Port

2 x 5G MMCX Connectors

20M/40M Bandwidth

Support LTE/3G application（Optional）

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Applications

Security Surveillance

Commercial radio coverage

Hotel Wireless application

Country coverage

Forest fire protection engineering

Some special scene application

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	0 to +56	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-65 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Operating Conditions




Parameter	Rating	Unit
Supply Voltage(DC Jack)	+12 to +56	V
POE	+24 to +56	V
Temperature	-40 to +70	ºC




Hardware Specifications




Symbol	Parameter
CPU	Atheros AR9342 530MHz processor frequency
System Memory	64M DDR2
NOR Flash	16MB
Switch IC	Atheros AR8035-AL1AR 1 GIGA port PHY/RGMII switch
Power IC	TI/TPS5436
Power consumption	6W(Board Only)
1000MLAN port    POE define	Pin 4/5 and pin 7/8 connect to the anode or cathode respectively    POE input
Antenna Connector	2 x 5G MMCX connectors
Power Connector	1 x DC JACK D(center)=2.1mm Max 50V DC
Power Solution	DC Jack Input: 12-56V, Passive POE: 24 -56V
LAN Connector	1 x 1000M LAN port
ROHS Compliance	YES
Reset Button	RT push button
Dimension	99mm x 85mm x 16mm
Socket Height	Mini PCIE 9.2mm
