DR40x9 IPQ4019 IPQ4029 802.11AC 2x2 2.4G&5G

Wallys Communications (Suzhou ) Co., LTD(web:wallystech)

With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and

wireless network cards

products:

wifi6 router

WiFi 6 (802.11ax)

802.11ac，wireless

DR40x9 IPQ4019 IPQ4029 ,802.11AC 2x2 2.4G&5G Support all the modules of Quectel Support HTTPS

Featuring with industrial-grade IPQ4019/IPQ4029 chipset

Integrated with 2x 2 5G high power Radio module and 2x2 2.4G high power Radio module

Support 4.940GHz to 5.825GHz Frequency Range

Support 2.400GHz to 2.482GHz

Support 2 x 5G MMCX Connectors and 2x2.4G MMCX

Support 5MHz/10MHz/20MHz/40MHz/80MHz Bandwidth

Support 11ABGN/AC

Support fixed data rate

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

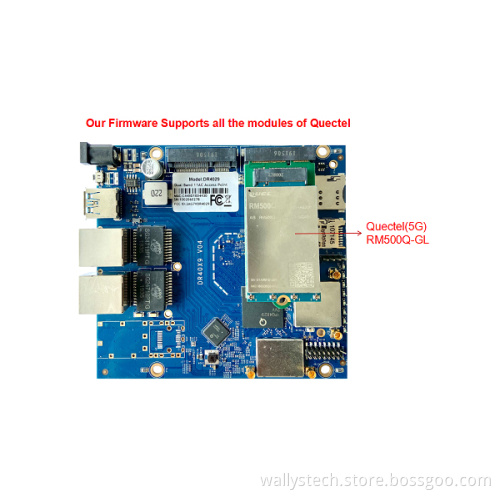

Our Firmware supports all the modules of Quectel

Absolute Maximum Rating




Parameter	Rating	Unit
Supply Voltage	24V~48	V
Operating Temperature Range	-40 to +70	ºC
Storage Temperature Range	-45 to +105	ºC
Operating Humidity Range	5 to +95 (non-condensing)	%
Storage Humidity Range	0 to +90 (non-condensing)	%




Hardware Specifications




Symbol	Parameter
CPU	IPQ4029（Quad core ARM Cortex A7 at 716.8 MHz）
Antenna Connector	2 x 5G MMCX connectors;2x2.4G MMCX
10/100/1000Mbps Gigabit Ethernet	2xRJ45
SFP connector	1xSFP fiber module connector (optional)
3G/4G connector	1xminipcie 3G/4G connector support with two sim card
USB connector	1xUSB 3.0 connector
POE	24V~48V passive POE
DC Jack	24V~48V power supply
ROHS Compliance	YES
Dimension	115mm x 105mm x 16mm
Max Power	48.1V x 0.180A= 8.658W
Nor Flash	2MB~32MB
Nand Flash	128MB
DDR	256MB~512MB

Radio TX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11a	6 Mbps	27dBm	30dbm	±2dB
	54 Mbps	23dBm	26dbm	±2dB
802.11n HT20	MCS0, MCS8	26dBm	29dbm	±2dB
	MCS7, MCS15	22dBm	25dbm	±2dB
802.11n HT40	MCS0, MCS8	25dBm	28dbm	±2dB
	MCS7, MCS15	21dBm	24dbm	±2dB
802.11ac	MCS0, MCS10,MCS20	25dBm	28dbm	±2dB
	MCS9,MCS19,MCS29	19dBm	22dbm	±2dB




Radio RX Specifications(5180MHz-5825MHz)




Operating Mode	Data Rate	Sensitivity
802.11a	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-93dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm
802.11AC HT40	MCS0, MCS10,MCS20	-90dBm
	MCS9,MCS19,MCS29	-67dBm
802.11AC HT80	MCS0, MCS10,MCS20	-88dBm
	MCS9,MCS19,MCS29	-62dBm




Radio TX Specifications(2412MHz-2482MHz)




Operating Mode	Data Rate	Power		Tolerance
		1 Chain	2 Chains
802.11g	6 Mbps	27dbm	30dbm	±2dB
	54 Mbps	25dbm	28dbm	±2dB
802.11n HT20	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	25dbm	28dbm	±2dB
802.11n HT40	MCS0, MCS8	26dbm	29dbm	±2dB
	MCS7, MCS15	24dbm	27dbm	±2dB




Radio RX Specifications(2412MHz-2482MHz)




Operating Mode	Data Rate	Sensitivity
802.11g	6 Mbps	-96dBm
	54 Mbps	-78dBm
802.11n HT20	MCS0, MCS8	-93dBm
	MCS7, MCS15	-73dBm
802.11n HT40	MCS0, MCS8	-90dBm
	MCS7, MCS15	-70dBm
