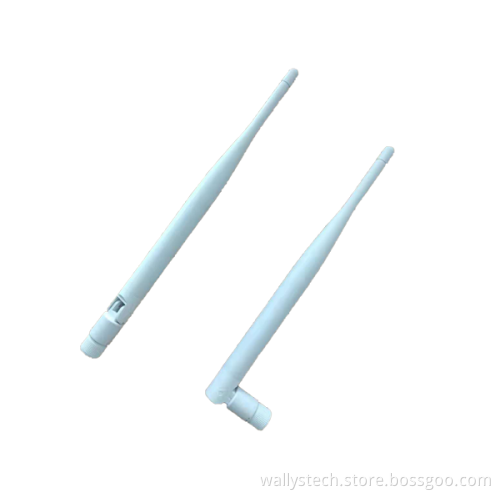

DRA2G5G5D001 Dipole Antenna, 5dBi 2.4GHz/5GHz of frequency wifi6

$200.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Payment Type:	L/C,D/P,T/T,D/A,Paypal,Money Gram,Western Union
Transportation:	Air

Product Description

Wallys Communications (Suzhou) Co LTD (web:wallystech com)

With over 15 years of experience in wireless industry and penetrating market olfaction,

Wallys has designed and manufactured many high quality and cost-effective routerboards and

wireless network cards
products:
wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless

DRA24126ESBE

Wi-Fi 6E，2.4~2.5&5.15~7.15GHz ，Dipole Antenna

1. Feature

* External type dipole antenna

* 2.4GHz/5GHz of frequency

* SMA Pluginterface

* Plastic rod of black

* RoHS compliance

2. Application

* 2.4GHz/5GHz Wireless Communication

* WLAN device, WLAN Router, e.g., AP, PIC Wireless Card

3. Description

This miniature antenna is designed for 2.4GHz/5GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.

General Data

Product Name

5dBi Dual band Dipole Antenna

Part No.

DRA2G5G5D001

Frequency

2.4~2.5GHz&5.15~5.85GHz

V.S.W.R

<2.0

Gain (dBi)

2.4GHz 3.0dBi 5GHz 5.0dBi

Polarization

Linear,Vertical

Storage Temp

-10°C 〜+70°C

Operating Temperature

-10°C 〜+60°C

Impedance with Matching

50Q

Weight

21.5 g

Antenna Type

SMAPLUG

Dimension

L195X φ 13 (mm)

Send your message to this supplier

* From:
* To:

Ms. YIYI
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Wifi Antenna

Product Name	5dBi Dual band Dipole Antenna
Part No.	DRA2G5G5D001
Frequency	2.4~2.5GHz&5.15~5.85GHz
V.S.W.R	<2.0
Gain (dBi)	2.4GHz 3.0dBi 5GHz 5.0dBi
Polarization	Linear,Vertical
Storage Temp	-10°C 〜+70°C
Operating Temperature	-10°C 〜+60°C
Impedance with Matching	50Q
Weight	21.5 g
Antenna Type	SMAPLUG
Dimension	L195X φ 13 (mm)
