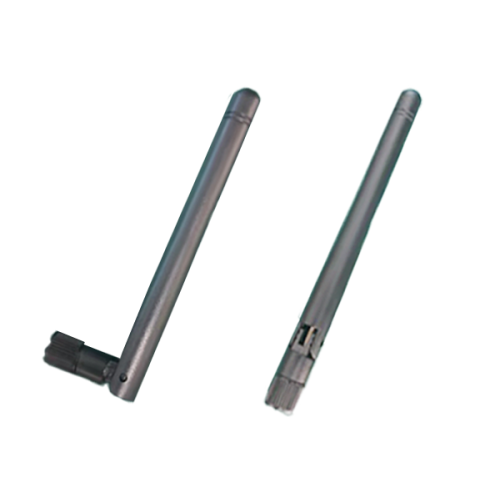

DRA24126ESBE Wi-Fi 6E,2.4~2.5&5.15~7.15GHz ,Dipole Antenna

$200.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china
Payment Type:	L/C,T/T,D/P,D/A,Paypal,Money Gram,Western Union
Transportation:	Air

Product Description

Wallys Communications (Suzhou) Co LTD (web:wallystech com)

With over 15 years of experience in wireless industry and penetrating market olfaction,

Wallys has designed and manufactured many high quality and cost-effective routerboards and

wireless network cards
products:
wifi6 router
WiFi 6 (802.11ax)
802.11ac wireless

DRA24126ESBE

Wi-Fi 6E，2.4~2.5&5.15~7.15GHz ，Dipole Antenna

1. Feature

*External type dipole antenna

* 2.4~2.5&5.15~7.15GHz of frequency

* Plastic rod of Black

* RoHS compliance

2. Application

* Wi-Fi 6E Wireless Communication

* WLAN device, WLAN Router, e.g., AP,PIC Wireless Card

3. Description

Suzhou Wallys Communication Co., Ltd, this miniature antenna is designed for Wi-Fi 6E applications

and can be easily built-in portable devices for SMA Plug. It has excellent stability and sensitivity to

consistently provide high signal reception efficiency

4. General Data

Symbol	Parameter
Product Name	Wi-Fi 6E Dipole Antenna
Part No.	DRA24126ESBE
Frequency	2.4~2.5&5.15~7.15GHz
V.S.W.R	2.4-1.92max 5.85-2.1max
Gain（dBi）	2.45GHz 3.0dBi 5.85GHz 4.0dBi
Polarization	Linear,Vertical
Storage Temp	-10℃~+70℃
Operating Temperature	-10℃~+60℃
Impedance with Matching	50 Ω
Weight	6.5 g
Antenna Type	SMA Plug
Dimension	L108.4X φ 11.0 (mm)
