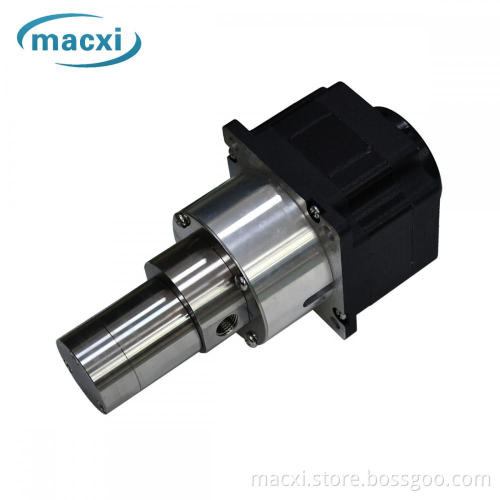

stainless steel fluid transfer pump

$316.10

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china,jiangsu
Productivity:	50000/year
Supply Ability:	50000/year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090、8443992990、8413910000
Transportation:	Ocean,Land,Air
Port:	shanghai

Product Description

Product Instruction:

The brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. It has the functions of speed measurement, speed adjustment, forward and reverse rotation. It can be connected with the upper computer to realize intelligent control. It is especially suitable for the workplace with frequent start and stop, such as liquid filling. Step motor or servo motor can be selected as driving power.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M3.00S72BL170W

Product Diagram:

72 Dc

Product Parameters:

Pump Model	Motor Type	L1（mm）	L2（mm）	Pressure（bar)	Weight(kg)	Rated Current（A）	Imp.&Exp. Size	Flow（L/H）
M1.50S72	BL170W	187.9	49.1	8	2.62	9.5	G1/4	27～405
M3.00S72	BL170W	204.9	66.1	4	2.75	9.5	G3/8	54～810

Pump Head Parameter		Motor Parameter		Motor wiring
Continuous work pressure	0.8MPa	Rated Power	24V	Red	+5V	Yellow (Thick)	R(U) Phase
Fluid Viscosity	0.2-3000cps	Revolution	500-4500rpm	Black	0	Green (Thick)	S(V) Phase
Ambient Temperature	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Slot and Pole No.	12 Slot & 8 Pole	Yellow（Thin）	HALL A(U)	Blue (Thick)	T(W) Phase
Static sealing	PTFE	Hall mechanical angle	120°	Green （Thin）	HALL B(V)
Pump Body material	316L	Working system	Continuous or intermittent operation (can be started frequently)	Blue（Thin）	HALL C(W)
Gear Materiall	PEEK and shaft 316L	Working system

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.
