Product Description

Product Instruction:

AC frequency asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. Booster circluation pump can work stably for a long time. The structure and pressurization capability of the motor are specially designed to adapt to the high speed and higher harmonics. miniature magnetically coupled gear pump is easy to use and has low maintenance cost. The flow can be adjusted. If used in flammable and explosive places, explosion-proof motor should be selected.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M0.30S57YP0.18KW4P

Product Diagram:

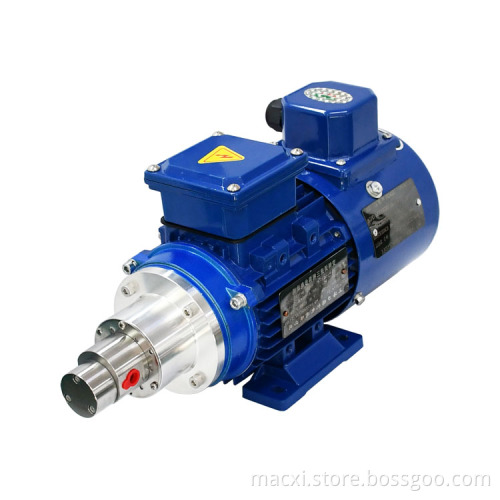

57 Variable Frequency Motor Micro Gear Pump

Product Parameters:

Pump Model	Motor Type	Motor Base	L1（mm）	L2（mm）	L3（mm）	The max pressure (bar) (test medium: water)		Weight (kg)	Imp.&Exp. Size	Rated Flow（L/H）
Pump Model	Motor Type	Motor Base	L1（mm）	L2（mm）	L3（mm）	2 Pole	4 Pole	Weight (kg)	Imp.&Exp. Size	2 Pole	4 Pole
M0.07S57	YP0.18KW	63	346.4	91.4	31.2	2	1	5.49	G1/8	11.76	5.88
M0.15S57			348.7	93.7	33.5	4	2	5.49		25.2	12.6
M0.30S57			348.7	93.7	33.5	8	4	5.49		50.4	25.2
M0.60S57			352.9	97.9	37.7	8		5.50		100.8	50.4
M0.90S57			357.1	102.1	41.9			5.52		151.2	75.6
M1.50S57			365.9	110.9	50.9			5.55	G1/4	252	126

Pump Head Parameter

Motor Parameter

Continuous work pressure

1.2MPa

Rated Power

Three-Phase 380V/220V

Fluid Viscosity

0.2-1500cps

Rated frequency

50HZ

Ambient Temperature

-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)

Rated Current

Static sealing

PTFE

Protection Level

IP55

Pump Body material

304/316L

Working system

Continuous

Gear Material

PEEK and shaft 304/316L

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:

1. Inner-hexagon screw*3 5. Pump body 9. Rear cover 13. Countersunk head screw*3

2. Front cover 6. Tef/lon gasket*2 10. O-ring 14. Isolation cover

3. Shaft sleeve*6 7. Driving gear 11. Platen

4. Pin*2 8. Driven gear 12. Internal magnetic steel

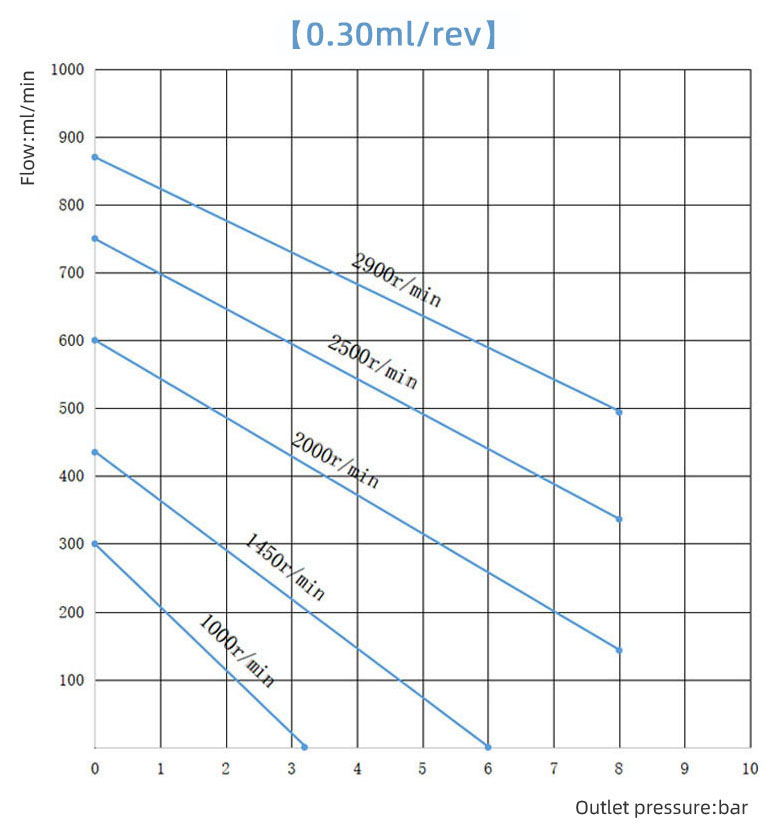

Product characteristic diagram:
