Highly accurate output micro magnetic gear dosing pump

Highly accurate output micro magnetic gear dosing pump

$390.80

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Land, Air, Ocean

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	jiangsu,china
Productivity:	50000/year
Supply Ability:	50000/year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090/8443992990/8413910000
Transportation:	Land,Air,Ocean
Port:	shanghai

Product Description

Product Instruction:

AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the frequency converter. If used in flammable and explosive places, explosion-proof motor should be selected.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M0.07S57Y0.18KW2P

Product Diagram:

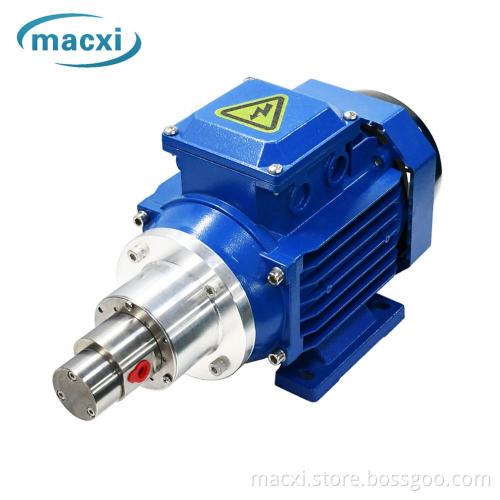

57 Ac Asynchronous Motor Gear Pump

Product Parameters:

Pump Model	Motor Type	Motor Base	L1（mm）	L2（mm）	L3（mm）	The max pressure (bar) (test medium: water)		Weight (kg)	Imp.&Exp. Size	Rated Flow（L/H）
Pump Model	Motor Type	Motor Base	L1（mm）	L2（mm）	L3（mm）	2 Pole	4 Pole	Weight (kg)	Imp.&Exp. Size	2 Pole	4 Pole
M0.07S57	Y0.18KW	63	296.4	91.4	31.2	2	1	5.11	G1/8	11.76	5.88
M0.15S57			298.7	93.7	33.5	4	2	5.11		25.2	12.6
M0.30S57			298.7	93.7	33.5	8	4	5.11		50.4	25.2
M0.60S57			302.9	97.9	37.7	8		5.12		100.8	50.4
M0.90S57			307.1	102.1	41.9			5.14		151.2	75.6
M1.50S57			315.9	110.9	50.9			5.17	G1/4	252	126

Pump Head Parameter

Motor Parameter

Continuous work pressure

1.2MPa

Rated Power

Three-Phase 380V/220V

Fluid Viscosity

0.2-1500cps

Rated frequency

50HZ

Ambient Temperature

-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)

Rated Current

0.6A

Static sealing

PTFE

Protection Level

IP55

Pump Body material

304/316L

Working system

Continuous

Gear Material

PEEK and shaft 304/316L

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:

1. Inner-hexagon screw*3 5. Pump body 9. Rear cover 13. Countersunk head screw*3

2. Front cover 6. Tef/lon gasket*2 10. O-ring 14. Isolation cover

3. Shaft sleeve*6 7. Driving gear 11. Platen

4. Pin*2 8. Driven gear 12. Internal magnetic steel

Product characteristic diagram:
