Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

   "T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

  "P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

  "H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive  DC  brushless;  BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M6.00H88YB0.55KW4P

Product Diagram:

Product Parameters:

Pump Model	Motor Type	Motor Base	L1 (mm)	L2 (mm)	A	AB	H	HD	AD	B	C	K	AC	Weight(kg)	Imp.&Exp. Size	Rated Flow （L/H）
																2 Pole	4 Pole
M3.00H88	YB0.37KW	71	384.5	127.5	112	140	71	250	165	90	45	7	150	19.68	G1/2	504	252
M6.00H88	YB0.55KW		392.5	135.5										20.92		1008
		80	440.5	145.5	125	165	80	320	180	100	50	10	170	22.92			504
M12.00H88	YB0.75KW		456.5	161.5										26.23	G3/4-G1/2	2016	1008

Pump Head Parameter		Motor Parameter
Continuous work pressure	1.0MPa	Rated Power	Three-Phase 380V/220V
Fluid Viscosity	0.2-5000cps	Rated frequency	50HZ
Ambient Temperature	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Protection Level	IP55
Static sealing	PTFE	Working system	Continuous
Pump Body material	Hastelloy	EX proof type	Flameproof
Gear Material	Gear PEEK, gear shaft Hastelloy

The values in this table are for reference only.



Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:

1. Inner-hexagon screw*4      5.   Pin*2                     9.  Rear cover          13.  Countersunk head screw*4

2. Front cover                        6.  Driving gear           10.  O-ring 2              14.  Isolation cover

3. O-ring 1*2                          7.  Driven gear           11.  Internal magnetic steel

4. Shaft sleeve*5                   8.  Pump body            12.  Platen

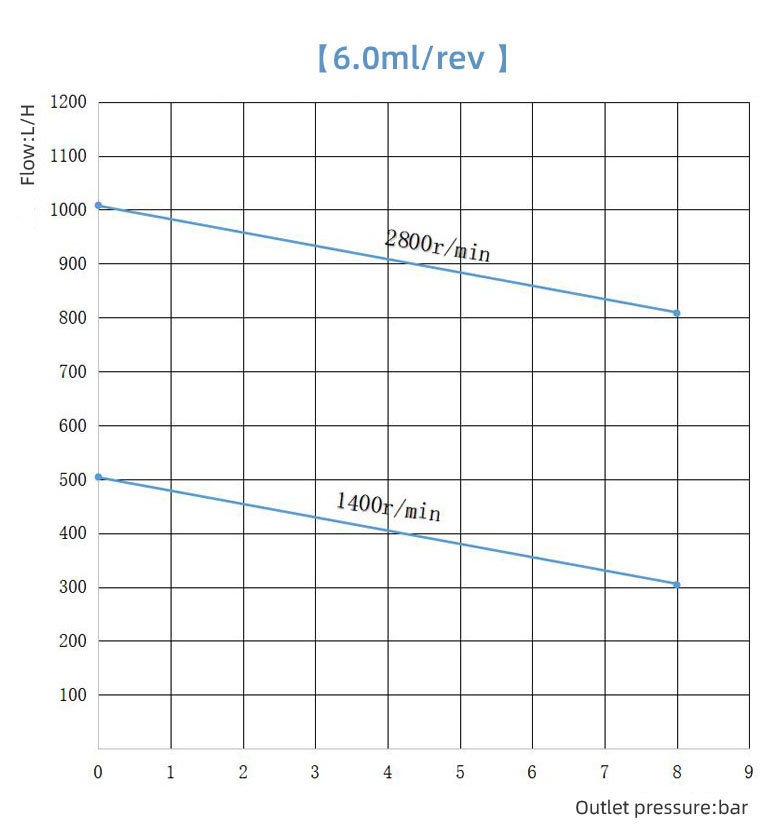

Product characteristic diagram:

Product Characteristics:

No pulse, high precision.

the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.

Stable transmission.

Gear transmission can ensure constant instantaneous transmission ratio.

Zero leakage.

no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage.

Corrosion resistance.

304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.

Efficient and convenient, long service life.

adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.

Applicability.

suitable for high differential pressure, high system pressure and wide range of medium viscosity.



long service life.

The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.

Diversified drive mode.

magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.

A wide range of applications.

magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.

Applicable conditions:

All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation.

It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries.
