Micro Magnetic Drive Gear Pump in explosive places

Micro Magnetic Drive Gear Pump in explosive places

$1771.60

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu Province, China
Productivity:	50000 PCS / year
Supply Ability:	30000 Piece/Pieces per Year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090、8443992990、8413910000
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Product Instruction:

Explosion-proof AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. Corrosion Resistant Alloymagnetic Gear Pump can work stably for a long time. Magnetic Drive Metering Gear Pump is easy to use and has low maintenance cost. The flow can be adjusted by the frequency converter.Food Filling Micro Gear Pump can be used in flammable and explosive situations.The Hastelloy 3.00ml/rev Gear Pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M3.00H88YB0.37KW4P

Product Diagram:

88 Explosion Proof Motor Micro Gear Pump

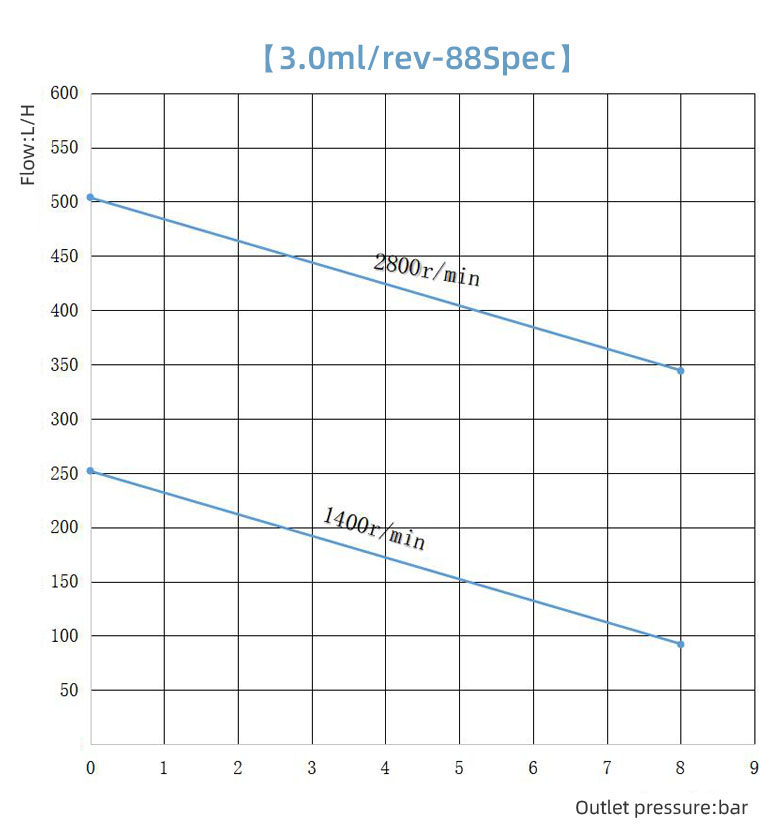

Product Parameters:

Pump Model	Motor Type	Motor Base	L1 (mm)	L2 (mm)	A	AB	H	HD	AD	B	C	K	AC	Weight(kg)	Imp.&Exp. Size	Rated Flow （L/H）
																2 Pole	4 Pole
M3.00H88	YB0.37KW	71	384.5	127.5	112	140	71	250	165	90	45	7	150	19.68	G1/2	504	252
M6.00H88	YB0.55KW		392.5	135.5										20.92		1008
		80	440.5	145.5	125	165	80	320	180	100	50	10	170	22.92			504
M12.00H88	YB0.75KW		456.5	161.5										26.23	G3/4-G1/2	2016	1008

Pump Head Parameter		Motor Parameter
Continuous work pressure	1.0MPa	Rated Power	Three-Phase 380V/220V
Fluid Viscosity	0.2-5000cps	Rated frequency	50HZ
Ambient Temperature	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Protection Level	IP55
Static sealing	PTFE	Working system	Continuous
Pump Body material	Hastelloy	EX proof type	Flameproof
Gear Material	Gear PEEK, gear shaft Hastelloy

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:
