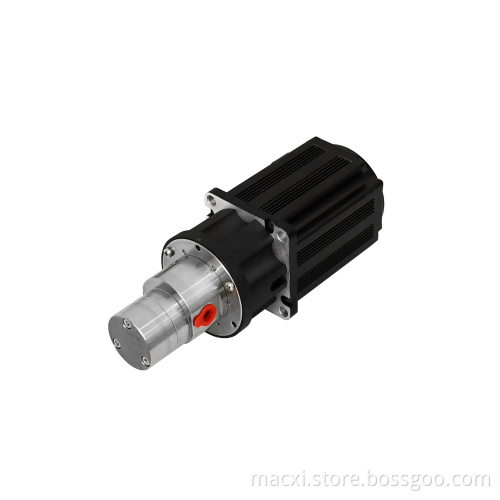

SS pigment inks Micro Magnetic Drive Gear Pump

SS pigment inks Micro Magnetic Drive Gear Pump

$773.50

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	jiangsu,china
Productivity:	50000/year
Supply Ability:	30000 Piece/Pieces per Year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090/8443992990/8413910000
Transportation:	Ocean,Land,Air
Port:	shanghai

Product Description

Product Instruction:

The brushless DC motor is used as the power driving gear pump. The brushless motor driver is configured to realize the motor function control. Filling gear pump has the functions of speed measurement, speed adjustment, forward and reverse rotation. Additive metering pump can be connected with the upper computer to realize intelligent control. Pressure pump is especially suitable for the workplace with frequent start and stop, such as liquid filling. Step motor or servo motor can be selected as driving power.

The magnet metering pump body materials is Hastelloy, the medical equipment pump gear and shaft sleeve is PEEK, the food processing euqipment pump seal materials is PTFE, the rest of the pump flow material is Hastelloy.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M0.60H57BL120W

Product Diagram:

57 Dc

Product Parameters:

Pump Model	Motor Type	L1（mm）	L2（mm）	The max pressure (bar) (test medium: water)	Weight(kg)	Rated Current（A）	Imp.&Exp. Size	Flow Range（L/H）
M0.07H57	BL120W	164.8	31.2	3.5	1.60	6.7	G1/8	1.26～18.9
M0.15H57		167.1	33.5	8	1.608			2.7～40.5
M0.30H57		167.1	33.5		1.60			5.4～81
M0.60H57		171.2	37.7		1.61			10.8～162
M0.90H57		175.5	41.9		1.63			16.2～243
M1.50H57		184.5	50.9	4	1.66		G1/4	27～405

Pump head parameter		Motor parameter		Motor wiring
Continuous work pressure	0.6MPa	Rated voltage	24V	Red	+5V	Yellow (Thick)	R(U) Phase
Viscosity range	0.2-1500cps	Rev. range	500-4500rpm	Black	0	Green (Thick)	S(V) Phase
Temperature range	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Slot and Pole No.	6 Slot & 4 Pole	Yellow（Thin）	HALL A(U)	Blue (Thick)	T(W) Phase
Static sealing	PTFE	Hall mechanical angle	60°	Green （Thin）	HALL B(V)
Pump Material	Hastelloy	Working System	Continuous or intermittent operation (can be started frequently)	Blue（Thin）	HALL C(W)
Gear Material	PEEK and shaft Hastelloy	Working System

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

0 6curve Of Micro Gear Pump
