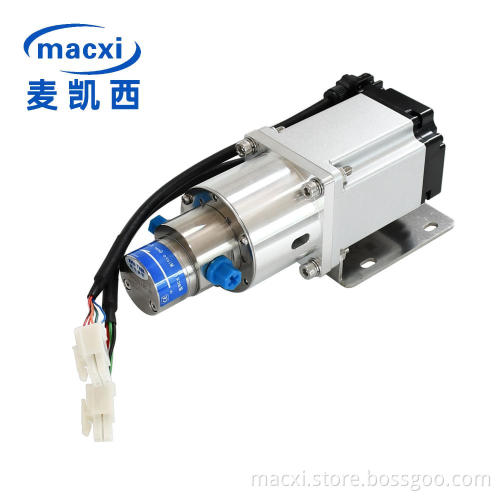

Has tel loy Servo motor micro gear pump

$1053.20

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Land, Ocean, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china,jiangsu
Productivity:	50000/year
Supply Ability:	50000/year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090/8443992990/8413910000
Transportation:	Land,Ocean,Air
Port:	shanghai

Product Description

Product Instruction:

The Corrosion Resistant Alloymagnetic Gear Pump is driven by servo motor. The closed-loop control of position, speed and torque is realized to improve the quantitative accuracy of gear pump. Good high-speed performance and stable low-speed operation can improve the gear pump's larger flow regulation range. Hastelloy 0.30ml/rev Gear Pump can withstand three times of the rated load. Positive Displacement Pump is especially suitable for occasions with instantaneous load fluctuation and quick start-up. Low noise, low heat.

The Chemical Industrial Magnetic Pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M0.30H57SM400W

Product Diagram:

57 Servo Motor Micro Gear Pump

Product Parameters:

Pump Model	Motor Type	L1（mm）	L2（mm）	L3（mm）	The max pressure (bar) (test medium: water)	Weight(kg)	Rated Current（A）	Imp.&Exp. Size	Rated Flow （L/H）
M0.07H57	SM400W	223.1	92.4	31.2	2	2.38	2.6	G1/8	12.6
M0.15H57		225.4	94.7	33.5	5	2.38			27
M0.30H57		225.4	94.7	33.5	6	2.38			54
M0.60H57		229.6	98.9	37.7		2.39			108
M0.90H57		233.8	103.1	41.9		2.41			162
M1.50H57		242.8	112.1	50.9		2.44		G1/4	270

Pump Head Parameter		Motor Parameter
Fluid Viscosity	0.2-1500cps	Rated Power	220V
Ambient Temperature	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Rated torque	1.27Nm
Static sealing	PTFE	Rated Power	400W
Pump Body material	Hastelloy
Gear Material	Gear PEEK, gear shaft Hastelloy

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:
