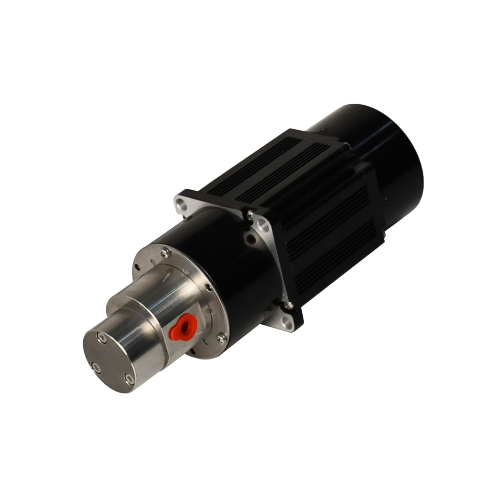

DC brushless drive Electromagnetic Drive Gear Pump

DC brushless drive Electromagnetic Drive Gear Pump

$898.60

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china,jiangsu
Productivity:	50000/year
Supply Ability:	50000/year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090/8443992990/8413910000
Transportation:	Ocean,Land,Air
Port:	shanghai

Product Description

Product Instruction:

The built-in brushless DC motor is used to drive the Paints and Inks delivery pump. The drive of the product is integrated in the tail of the motor, so there is no need to connect the external driver. Please refer to the above table for the wiring definition!

The Pharmaceutical and cosmetics pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy.

Hastelloy 0.07ml/rev Gear Pump is a positive displacement Chemical gear pump which realizes non-contact torque transmission through magnetic driver, so as to replace dynamic seal with static seal and make the Metering pump completely leak free.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Model Selection Instruction：

Pump Head				Motor
M	0.07	S	57	BL	120W
"M" means by magnetic drive	Pump revolution, Unit: ml/rev, note 1 for details	Pump body materials, note 2 details	Pump head spec, Unit: mm, note 3	Motor Type, Note 4	Motor Power

Notes:

1. Pump output volume: 0.07,0.15,0.3,0.6,0.9,1.5,3.0,6.,12.0 (Unit: ml/rev)

2."S" means pump body material is 316L, gear and shaft sleeve are PEEK, seal with PTFE, the rest others are 316L.

"T" means pump body material is 316L, gear and shaft are Tungsten steel, shaft sleeve is PEEK, seal with PTFE, the rest others are 316L.

"P" means pump body material is PPS, gear materail and shaft sleeve are PEEK, seal with FFKM, the rest others are Hastelloy.

"H" means the pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy, the appearance and size is same as 316L pump, details product parameters refer to 316L pump head.

3. Pump head range: 57, 72, 88. Model 57 has 0.07,0.15,0.3,0.6,0.9,1.5 ml/rev;Model 72 has 1.5,3.0 ml/rev;

Model 88 has 3.0,6.0,12.0 ml/rev.

4.Motor:HS: Stepper Motor; BL: External drive DC brushless; BLa:Built-in drive DC brushless; BLb:Built-in drive DC brushless (potentiometer)DC:Brush motor; Y:Common asynchronous motor; YB:Explosion proof asynchronous motor; SM:Servo motor YP: General asynchronous frequency conversion YBP: Explosion proof asynchronous frequency conversion, SMP: Servo frequency conversion.

Product Model : M0.07H57BLa80W

Product Diagram:

Product Parameters:

Pump Model	Motor Type	L1（mm）	L2（mm）	The max pressure (bar) (test medium: water)	Weight(kg)	Rated Current（A）	Imp.&Exp. Size	Flow Range（L/H）
M0.07H57	BLa80W	170.1	31.2	3.5	1.46	4	G1/8	1.26～18.9
M0.15H57		172.4	33.5	8	1.46			2.7～40.5
M0.30H57		172.4	33.5		1.46			5.4～81
M0.60H57		176.6	37.7		1.47			10.8～162
M0.90H57		180.8	41.9	4	1.49			16.2～243

Pump Head Parameter		Motor Parameter		Motor wiring
Viscosity	0.2-1500cps	Drive Type	Built in drive DC brushless	Red	+5V
Temperature	-40℃-110℃(If the temperature of the conveying medium is over 70 °C, please make a special request.)	Rated voltage	24V	Black	0
Static sealing	PTFE	Speed regulating	0-5 (0.35V ON 0.3V OFF)	Brown	Speed control signal 0-5V input
Pump Material	Hastelloy	Revolution	500-4500rpm	Blue	5V level, square wave, 2 pulses per revolution
Gear Material	PEEK and shaft Hastelloy	Working system	Continuous	Blue	5V level, square wave, 2 pulses per revolution

The values in this table are for reference only.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:
