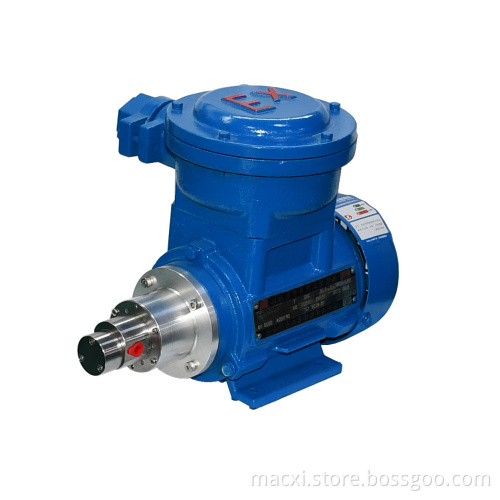

0.07 ml/rev magnetic gear dosing pump

$979.70

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean, Land, Air

Port:: Shanghai

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	china,jiangsu
Productivity:	50000/year
Supply Ability:	30000 Piece/Pieces per Year
Payment Type:	T/T
Incoterm:	FOB,CFR,EXW
Certificate:	ISO 9001
HS Code:	8413609090/8443992990/8413910000
Transportation:	Ocean,Land,Air
Port:	Shanghai

Product Description

Product Model Selection Instruction

Product Instruction

Explosion-proof AC asynchronous motor is used as the power to drive the gear pump to work. The speed is constant and the torque is large. It can work stably for a long time. It is easy to use and has low maintenance cost. The flow can be adjusted by the frequency converter. If used in flammable and explosive places, explosion-proof motor should be selected.

The pump body materials is Hastelloy, the gear and shaft sleeve is PEEK, the seal materials is PTFE, the rest of the pump flow material is Hastelloy.

Attentions:

1.400 Mesh filter shall be installed at the inlet of gear pump.

2.Before using, squeeze in a small amount of medium to lubricate the gear from the gear pump inlet.

Product Diagram:

0.07 ml/rev magnetic pump used in large quantities of fine grinding fine Chemical industrial

Product Parameters:

0.07 ml/rev magnetic pump used in large quantities of fine grinding fine Chemical industrial

The values in this table are for reference only.

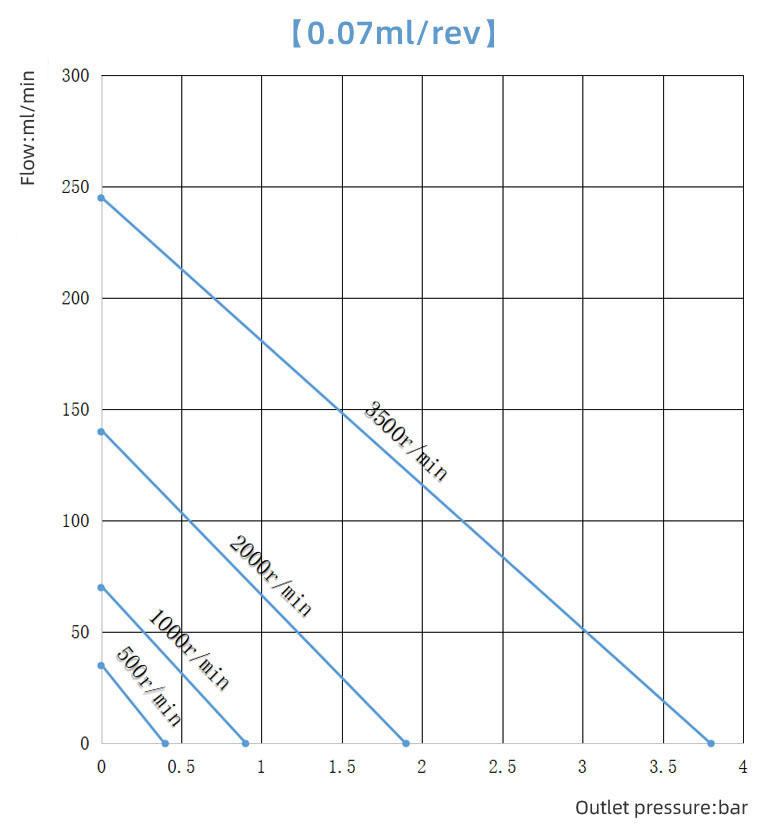

Product Characters:

Test medium: Water

0.07 ml/rev magnetic pump used in large quantities of fine grinding fine Chemical industrial

Product Characteristics:

1.Smooth transmission, no pulse, accurate measurement;
2.Use magnetic drive structure, static seal, truly achieve zero leakage;
3.Diversified drive, wide application in the industry, complete models;
4.High efficiency and energy saving, easy maintenance, low installation cost and long service life.

Attentions:
It cannot be used to transport fluids with hard particles;
Filter to be installed at inlet.

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Applications:

Industrial machinery and equipment	Water treatment	Food and cosmetics
Inkjet printing/painting	Mask making	Food and Beverage filling
Oil transportation	Booster pressure	Filling of perfume cosmetics
Sand mill/Grinding	Circulating cooling	Quantitative Transport
