Quantitative system chemical dosing metering pump

Product diagram and parts description:

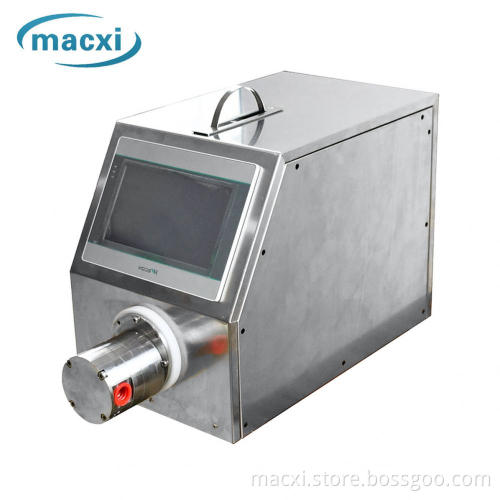

                                Pic.1 Product side view                                                                                        Pic.2 Rear view

Product size and configuration:

                                    Pic.3 Product front view                                                                   Pic. 4 Product right view

Product size

Product configuration

Technical parameters:

1,Input power：AC220V

2,Rated power：850W

3,Main technical parameters of gear pump

⑴displacement：3.00 ml/rev、6.00 ml/rev、12.0ml/rev

⑵Sealing material：PTFE/FFKM

⑶Pump body material：316L stainless steel

⑷working temperature ：-30℃-70℃（Customizable 70℃-200℃）

⑸Pressure difference between inlet and outlet：12Bar

     ⑹system pressure ：20Bar

     ⑺Applicable medium: most solvents, weak acids, weak bases

     4,Main technical parameters of servo motor

      ⑴Power：750W

⑵speed：0~3000R/M

⑶accuracy ：17 Bit encoder

      5,Main technical parameters of quantitative system

       ⑴Working mode: quantitative mode, Displacement mode

6,Sheet metal material: 304 stainless steel

           bottom plate thickness:2mm，side plate thickness:1mm，and top plate thickness:1mm

Remarks:
OEM service are avaiable according to your request.
The specifications are only for reference, for details checking, please feel free to contact us.

Pump head structure diagram:

Product Characteristics:

No pulse, high precision.

the external gear design makes the pump flow relatively unaffected by the system pressure,and the flow output has no pulsation, which can accurately measure the flow, and has strong repeatability.

Stable transmission.

Gear transmission can ensure constant instantaneous transmission ratio.

Zero leakage.

no packing seal or mechanical seal, no wearing parts, using magnetic drive, static seal,truly achieve zero leakage.

Corrosion resistance.

304 / 316L, Hastelloy and engineering plastics can be selected as pump body materials,which can be used in most chemical media.

Efficient and convenient, long service life.

adopt the way of motor direct drive, reduce the vulnerable parts. High efficiency and energy saving, simple maintenance, low installation cost, long service life.

Applicability.

suitable for high differential pressure, high system pressure and wide range of medium viscosity.

long service life.

The magnetic drive design of the non dynamic seal makes the shaft end no longer need the dynamic seal, which ensures the leakage free operation of the pump. The solid and stable shaft support can ensure the accurate meshing of the gear when the pump is running at high speed, ensure the smooth operation of the pump, the high accuracy of metering and the long service life of the pump.

Diversified drive mode.

magnetic drive gear metering pump can be directly connected with DC brushless motor,2-pole and 4-pole AC motor without reducer. The flow control of the pump can be realized by the controller of AC, DC, brushless DC and other motors. We can provide a variety of standard driving methods to meet the needs of customers.

A wide range of applications.

magnetic drive gear pump in the design, manufacture and application of a large number of use of magnetic drive, pump and motor technology. It has the advantages of no pulsation, long life and no leakage. These advantages make our products widely used in chemical, medical, laboratory, water treatment, food and other industries.

Applicable conditions:

All kinds of liquids, high precision fluid transportation, high repeatability, continuous small flow without pulsation.

It is used in aviation equipment, aircraft, spacecraft, chemical laboratory, chemical reagent adding, film manufacturing, pharmaceutical machine equipment, various lasers, micro cooling device of sighting instrument,tobacco flavoring adding, inkjet printing machine manufacturing, inkjet printer manufacturing, high-performance color printing machine and other industries.
