Aluminum Coil Coating Machine Line with PVDF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- shanghai
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 10 Set/Sets per Year |
|---|---|
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Transportation: | Ocean |
| Port: | shanghai |
Coil Coating Line with PVDF
-Raw material: aluminum coil
-reverse rotating coating method

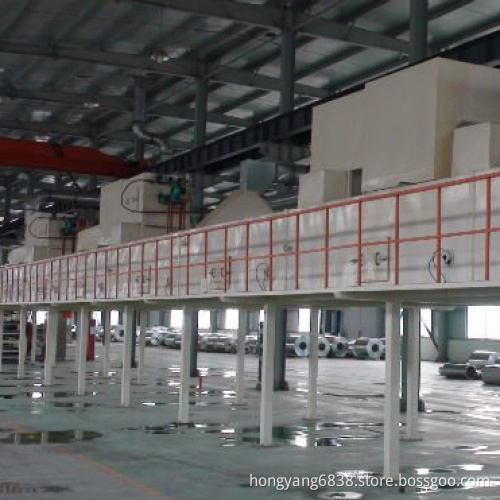

TZ1300/1600/2000 coating production line of aluminum plastic panel can paint all sorts of oil paint on the surface of chemically treated aluminum coil. Using the reverse three-roller coating machine, doing detailed coating under the closed and dust-free circumstance, the production line has good control on the thickness of the coat and quality of the film.The oven is divided into five temperature-control baking areas. The inside temperature of the oven in each area is balanced by auto adjustment of the temperature-control system, the Solvent resistance, hardness and flexibility of the coat would reach the best condition and with nice gloss, adherence and resistance to corrosion.
TECHNICAL DATA
Specification of aluminum coil(thickness*width) | (0.10-0.5)(800-1600)mm |
Maximum diameter of aluminum coil | Ø1400mm |
Temperature of oven | Adjusted from normal temperature to 260oC |
Electric power | 3Ø-380V-50HZ ,420kw |
Consumption of compressed air | 5-6kg/cm2 5-10m3/H Air pressure5-6kg/cm2dosage5-10m3/H |
Volume of water consumption | 0.05m3/H |
MAIN FEATURES:
--Be used for Baking paint of Acrylic acid, assembling fat, and fluorine carbon.
--Mirror-surface steel-roller converse coating, Multi-point panel- temperature monitoring.
--PID auto-calculating temperature control by infrared-ray temperature-testing
-- Double cooling by both air and liquid.
--Constant tension and line speed on transportation control.
--Roll take-in pneumatic hydraulic deviation auto-rectifying system.
--Touch-screen temperature control system (At customers option).
