Aluminum Coil Coating Panel Product Machine Line

Aluminum Coil Coating Panel Product Line

-Raw material: aluminum coil
-reverse rotating coating method

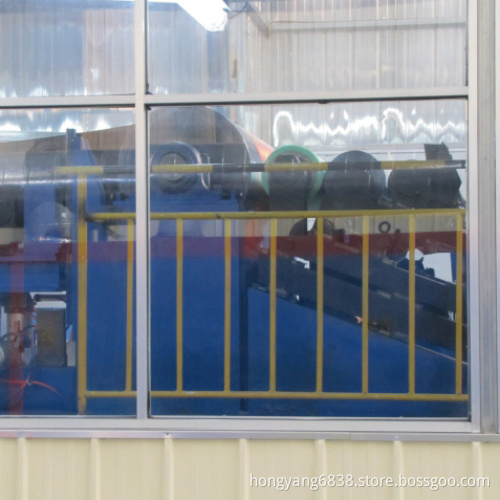

TZ1300/1600/2000 coating production line of aluminum plastic panel can paint all sorts of oil paint on the surface of chemically treated aluminum coil. Using the reverse three-roller coating machine, doing detailed coating under the closed and dust-free circumstance, the production line has good control on the thickness of the coat and quality of the film.The oven is divided into five temperature-control baking areas. The inside temperature of the oven in each area is balanced by auto adjustment of the temperature-control system, the Solvent resistance, hardness and flexibility of the coat would reach the best condition and with nice gloss, adherence and resistance to corrosion.

TECHNICAL DATA

MAIN FEATURES:

--Be used for Baking paint of Acrylic acid, assembling fat, and fluorine carbon.

--Mirror-surface steel-roller converse coating, Multi-point panel- temperature monitoring.

--PID auto-calculating temperature control by infrared-ray temperature-testing

-- Double cooling by both air and liquid.

--Constant tension and line speed on transportation control.

--Roll take-in pneumatic hydraulic deviation auto-rectifying system.

--Touch-screen temperature control system (At customers option).
