The new A2 aluminum composite panel with high class fireproof performance, which is the new choice for the modern architecture and decoration.

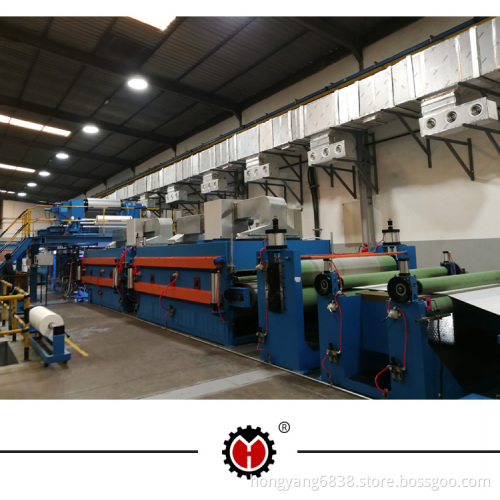

A2 Non-combustible Fireproof Aluminum Composite Panel Product Line
The machine can use the A2 non combustible core roll to bond with the up and bottom metal sheet under the continuous hot roller directly.
The machine use a unique new technical to replace the normal flammable material with non combustible material in the ACP, and with the function of automatic continuous production.
The panel can meet the stringent fire-reaction requirements of the European fire certification EN 13501-1, class A2 while offering an unlimited creative freedom in terms of transformations, applications, designs and colours.
The new aluminum composite panel with A2 core is the ideal solution for facades and roof cladding because it shows improved performance against fire.
Technical parameters:
1) Raw material
A2 core roll
AL coil: width 1000~2150mm thickness: 0.2~ 0.8mm max.diameter : 1500mm
Protective film: width 1000~2200mm thickness: 0.06~0.08mm max.diameter: 300mm
Macromolecule film: width 1000~2200mm thickness:0.05~0.10mm max. diameter: 300mm
2) Final panel
Width: 1000~2100mm thickness: 2~6mm length up to order
3) Max speed:
A2 panel max. speed: 2m/min against 1500*4mm, 0.5mm skin aluminum.
