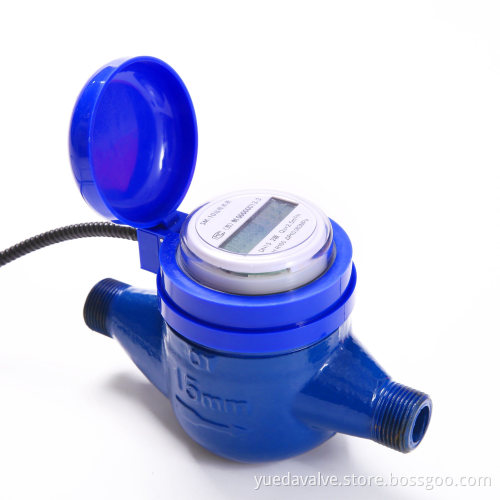

Wired Remote Reading Smart Electronic Water Meter

Blue small iron Modbus Wired remote reading smart electronic water meter

No.

Function name

Function brief introduction

Function parameter

1

Measurement

Measure pulse signals by ZERO power sensor

2

Meter number management

The unique identification number of each meter can only be modified by special equipment, of which the first 4 have been used, and the latter 10 for users. The meter writing function is valid under HALL pull in condition.

14 decimal numbers:

000000000000-999999999999

3

Accumulated flow

Forward cumulative measurement, reverse cumulative measurement, settlement cumulative flow.

4

Initialization

clear the measurement parameters or reset to default

Impact parameters refer. 2.3.3

5

Correction time

Correct anytime without leap year

2000 year~2100 year,

Minimum correction to seconds

7

Battery voltage detection

Alarm when the battery voltage reaches the lower limit

8

Remote diagnosis

Meter reading,reverse accumulation,balance,instantaneous flow , voltage, specified day reading, Failures,Valve Status etc.

remote diagnosis available whenever necessary

9

Data backup

The accumulate flow data is saved by every 0.001 m3 increasement

10

Reading and correction

Reading current pulse,net usage (unit:ml).

For professionals to use

11

Flow coefficient reading

Reading flow coefficient under 20 flow points

For professionals to use

12

Flow coefficient writing

Writing flow coefficient under forward 15 flow points

Writing flow coefficient under reverse 5 flow points

For professionals to use

13

Instantaneous flow reading

Read the current instantaneous flow, distinguish forward and reverse

Unit:M3/H

14

00:00 daily data

Save daily 00:00 forward and reverse accumulation, status etc.

Save for 1 week, weekly backup

No.

Name

Parameter

Remarks

Min

Typical examples

Max

Unit

1

Quiescent working current

19

24

uA

Inductance, the impeller not turning in LCD

2

Under-voltage point of the battery

2.6

2.8

V

3

Wireless comm. current

30

150

mA

4

Continuous communication intervals

7

year

Related to reading times

5

Communication distance

2

KM

Water meter on the ground, in an open environment

6

Main Power

+2.7

+3.6

+3.9

V

7

Battery

+3.6

V

8

Minimum comm. voltage

2.6

V

Voltage measured when battery activate

9

Normal working temperature

-10

50

ºC

10

Storage temperature

-20

60

ºC

11

Humidity

85%

12

Wireless comm. Baud rates

9600

Bps

13

Frequency

863

868

873

MHZ

14

Channel

21

unit
