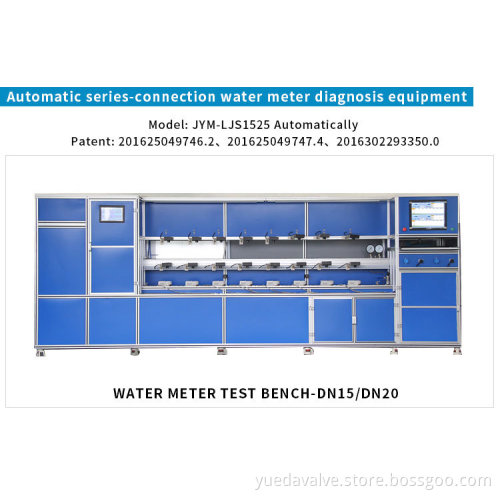

Weighting Method Automatic Test bench test computer system for  DN15-25 water meter

Patent: 201625049746.2,201625049747.4,2016302293350.0

                                           Equipment Overview

        Automatic water meter test device (hereinafter referred to as the device) is a statutory measurement verification institutions, water meter manufacturing industry, water companies and industrial and mining enterprises as the flow transfer standards, testing, calibration.It is necessary standard measuring instrument for calibrating water meter.

Two Steps working procedure by using our diagnosis equipment:

     Meter installation - Click - report printing

PERFORMANCE AND FEATURES:

(1) Calibration methods are all,The detecting device can support volumetric method, weighing method and comparison test scheme simultaneously.

(2) High Efficiency of production; 1,000 water flow meters can be diagnosed within 8 working hours

(3) Quick input: Input meter numbers by barcode gun; fast, accurate and convenience

(4) Energy saving including water, electricity power and manpower.

(5) Small Volume: Spaces saving, automatically, network sharing and auxiliary material save.

(6) Strong data management: Automatically diagnosis the whole procedure and come to conclusion by running software, save data of all the water flow meters and functions of diagnosis record querying, correction, statistics and print; plus network planning for multiple diagnosis equipments, set up the system of data management and query, so-called internet plus era.

(7) Innovative struction: Aluminum frame with 304SS lining, classy appearance for enhancing company image; can be integrated mobile, instead of outdated water flow meter diagnosis equipment, which cannot be moved.

(8) High expansibility: Automatic assembly line is reserved on the equipment for future upgrading. Digital and ultrasonic water meter is reserved as well. These functions are not available on ordinary meters.

(9) Suitable for upgrading most of outdated water meters in the country. Worth to be adopted by the administrative departments for measurement, water companies and water meter manufacturers.

Techniche Info:

(1) Accuracy of weighing sensor1/10000

(2) Circulating pump power2.2kw

(3) Concentricity of partial series connection of pneumatic fix clamp1mm

(4) Respond speed of high-speed video camera 500 frames/sec.

(5) Accuracy of servo motor 1/25000

(6) Time of pneumatic reversing 0.2 sec.

(7) Diagnosis range: wet-dry water meter with 15-25mm diameter.Save data of all the water flow meters and functions of diagnosis record querying, correction, statistics and print.
