Resilient Seat Gate Valve with Socket

Socket gate valve



Flate base

A basin-wide and straight-through design with the concave cavity of no flowing stagnation is applied at the bottom of the soft sealing gate valve in the company so as to guarantee the smooth of the fluid body without secondarily polluting the media.

Full-coated flashboard

The flashboard uses Ductile Iron QT500-7 skeleton overall coated by rubber of high performance. The mature technology and advanced workmanship of vulcanization completely isolates the iron core from the fluid body. The coating is tight and reliable and the bonding strength complies with the standard of DVGW. Even if suffering of frequently extruding pressure, the rubber will not drop off.

The structure of two-body type between the stem and the flashboard insures enough degrees of freedom. There is great flexibility of unlocking and closing without any obstruction.



 Socket gate valve without flange is able to be directly connected to the pipe. It is very convenient to install the valve. The valve can immediately achieve sealing once it connects with the pipe.



Anti-corrosion

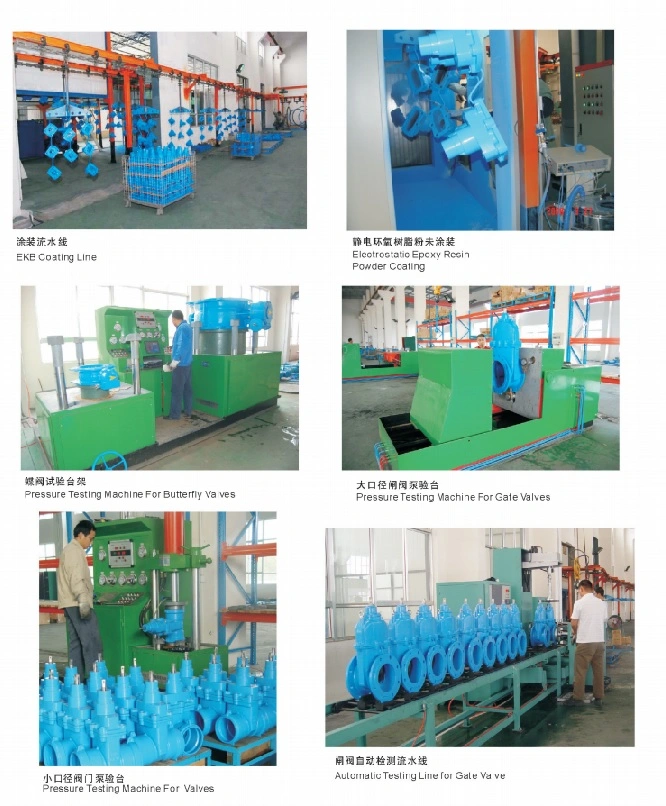

The body is electrostatically coated on both internal and external surfaces by epoxy resin powder. The coating is even and firm, allowing no exposure of any iron. The middle cavity connects with the rubber sealing on top of the bolt so that the bolt is isolated from the outside world so as to prevent eroding.



Sanitary quality of food class

The inner cavity of the gate valve is coated by non-toxic epoxy resin powder complying with DVGW standard and far higher than the GB/T17219 standard. The inner components such as the stem and its nut use stainless steel or bronze, which are free from water-corrosion.

The coated resin is in accordance with standards of drinking water.



Applying area

The gate valve can be applied to potable water systems, industries of foodstuff and medicine, industrial water supply and drainage and dispose of sewage as well as natural gas and gas and so on.

  valve for non-rising stem seal gate valves of the elastic base seat wedge type single ram, using direct channel structure. Dark stem design, the valve has the remarkable installation space small feature;
  ram as ductile iron skeleton + high-performance rubber, EPDM, advanced plastic injection molding technology and mature vulcanization process. The adhesive strength, tensile strength and resilience of the rubber are guaranteed, and the rubber after vulcanization has no defects such as bubble, crack and dew iron. Its binding strength meets the requirements of DVGW, and it will never fall off even if subjected to frequent extrusion stress. The bonding strength shall not be lower than 1.725mpa when measured according to GB/T 11211 standard. Make sure that the gate plates are interchangeable and the valve can be operated with low torque for sealing effect.
  gate on both sides of the guide rail with wear-resisting non-toxic engineering plastic (nylon), and gate valve is firm, good appearance, can accurate orientation, and greatly reduces the valve opening and closing torque;
high strength and high precision rolling stem, self-locking performance is good, and the stem nut and flexible shaft sleeve with precision, to ensure that the valve torque is extremely low, each parts material and the machining precision can ensure valve twice in the overload torque under the action of (according to EN1074.2) without any obvious damage, has the characteristics of high life;
  gate seal USES three type O sealing ring seal, has the advantages of infinite (no pollution, small torque). The ultra-high surface finish of the stem ensures that the service life of the stem o-ring is five times longer than the normal process (stem machining).
   stem nut cooperate closely with the ram, and to ensure that sufficient degrees of freedom, make instant valve open/close damper under the action of water pressure free adjustment, thoroughly overcome the bending stress due to the deflection deformation under the action, and can greatly reduce operating torque, increases the service life of the valve;
    contact seal for spherical sealing face of the upper gate line, contact area is lesser, open/close the valve and out of the sealing surface of short time, reduce the valve operating torque, and achieve the best sealing effect. In the sealing test, there is no structural damage to the gate plate. The base of the gate plate is changed from the domestic single seal to the double bar line seal, which effectively prevents the gate plate's axial swing under the action of water pressure, enhances the sealing performance, and can achieve two-way "zero leakage".
  jacket type rubber seal gate valves leading global modular design, can be realized with pressure change on sealing ring, without removing the valve from the piping is replaceable parts, do not remove the valve cover is easy to replace the valve stem, bring a lot of convenience to very case maintenance;
