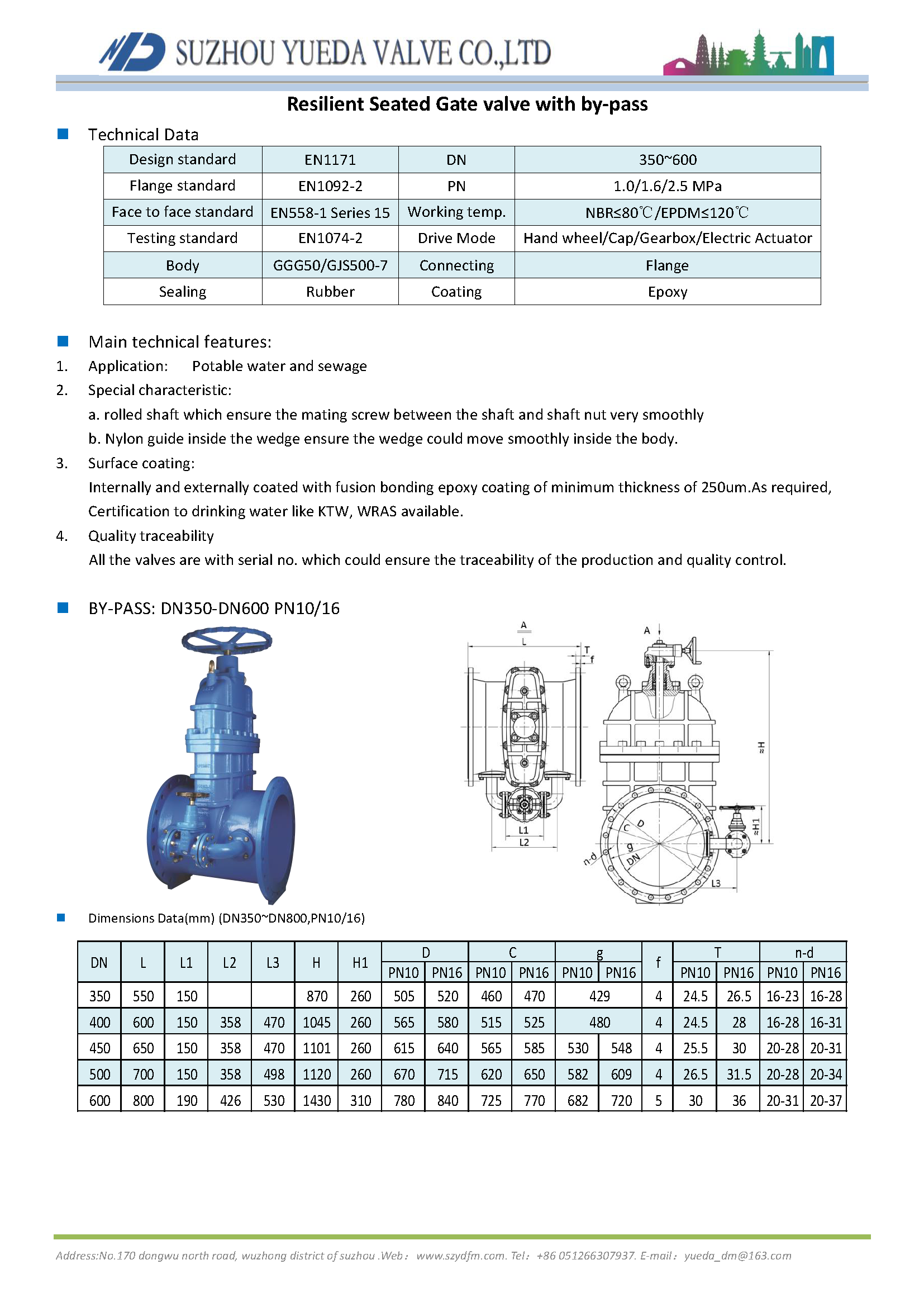

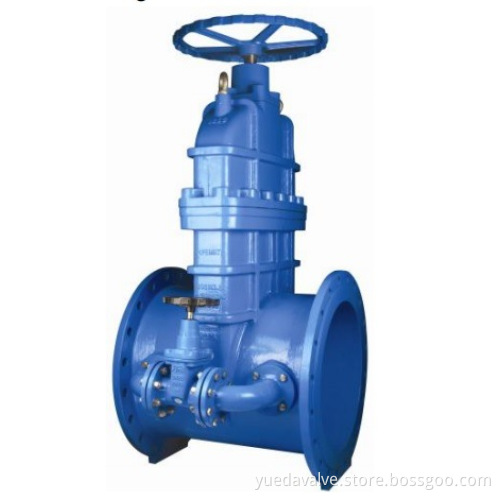

Resilient Seated Gate Valve with by-pass
- Min. Order:
- 10 Piece/Pieces
- Min. Order:
- 10 Piece/Pieces
- Transportation:
- Air, Ocean
- Port:
- Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Productivity: | 20000PCS/YEAR |
| Supply Ability: | 20000PCS/Year |
| Payment Type: | L/C,T/T |
| Incoterm: | CFR,CIF,FOB |
| Certificate: | ISO9001 |
| HS Code: | 8481804090 |
| Transportation: | Air,Ocean |
| Port: | Shanghai |
Flate base
A basin-wide and straight-through design with the concave cavity of no flowing stagnation is applied at the bottom of the soft sealing gate valve in the company so as to guarantee the smooth of the fluid body without secondarily polluting the media.
Full-coated flashboard
The flashboard uses Ductile Iron QT500-7 skeleton overall coated by rubber of high performance. The mature technology and advanced workmanship of vulcanization completely isolates the iron core from the fluid body. The coating is tight and reliable and the bonding strength complies with the standard of DVGW. Even if suffering of frequently extruding pressure, the rubber will not drop off.
The structure of two-body type between the stem and the flashboard insures enough degrees of freedom. There is great flexibility of unlocking and closing without any obstruction.
Reliable upper seal
The upper seal between the stem and top employs in total five O-Ring structure with their outside and two inside. Compared with traditional valves of stuffing-sealed structure, the sealing is tighter and more dependable and the frictional resistance diminishes in a larger scale.
Anti-corrosion
The body is electrostatically coated on both internal and external surfaces by epoxy resin powder. The coating is even and firm, allowing no exposure of any iron. The middle cavity connects with the rubber sealing on top of the bolt so that the bolt is isolated from the outside world so as to prevent eroding.
Sanitary quality of food class
The inner cavity of the gate valve is coated by non-toxic epoxy resin powder complying with DVGW standard and far higher than the GB/T17219 standard. The inner components such as the stem and its nut use stainless steel or bronze, which are free from water-corrosion.
The coated resin is in accordance with standards of drinking water.
Applying area
The gate valve can be applied to potable water systems, industries of foodstuff and medicine, industrial water supply and drainage and dispose of sewage as well as natural gas and gas and so on.
