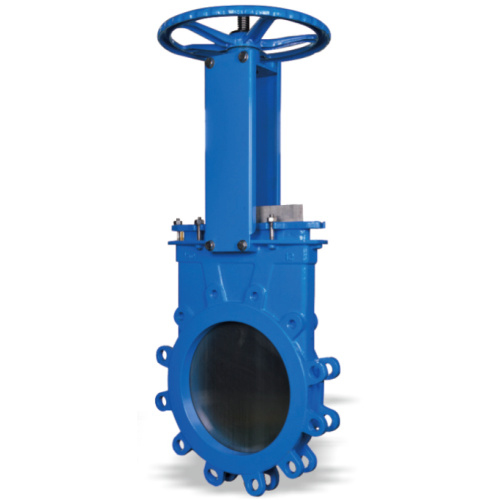

Knife gate valve
Summary:
The knife gate valve employs straight through structure of flange type or wafer type. It is metal-to-metal sealed or soft-sealed. When being opened or closed, the valve has small friction, so, a long service life, because the wedge and the sealing surface apply unique design, which has no concave cavity retaining water. The stem applies rising-stem type, which has left hand screw. When the stem nut is rotated, the opening scale of the valve can be directly viewed.
Function: the knife gate valve is able to regulate or cut off various media which may contain big granules, sticky objects or floats.
Driving mode: handwheel, worm gear, electric or pneumatic.
Characteristics of the structure:
It uses “U” type resilient sealing structure, relabel.
The stem made of stainless steel is durable, which is calendared by double threads. The valve has excellent performance and opens, closes more quickly.
The sealing surface of the wedge can automatically clear farraginous objects and scrape off those objects that are sticky to it.
The upper sealing uses scientific stuffing design, safe, effective and durable.
The orienting block on the body leads the wedge to run correctly. When being closed, the orienting block is pressed, which causes the closing tighter and tighter.
Excellent anti-corrosion:
The internal and external surfaces of the body made of QT450-10 are coated with epoxy resin. The sealing surface is firm, even and highly adhesive, excellent anti-corrosion.
High sanitary standards:
The non-toxic epoxy resin powder conforms to the requirements of GB/T17219-1998.
The sealing rubber complies with potable water standards.
Applicable areas:
The knife gate valve can be used to deal with polluted water containing granules; it also fits in power station or metallurgical refinery which dispose lime water, slags or water scales. It can be fixed on the equipment used in chemical, wine, sugar and paper-making industries as well as be connected to pipes.
