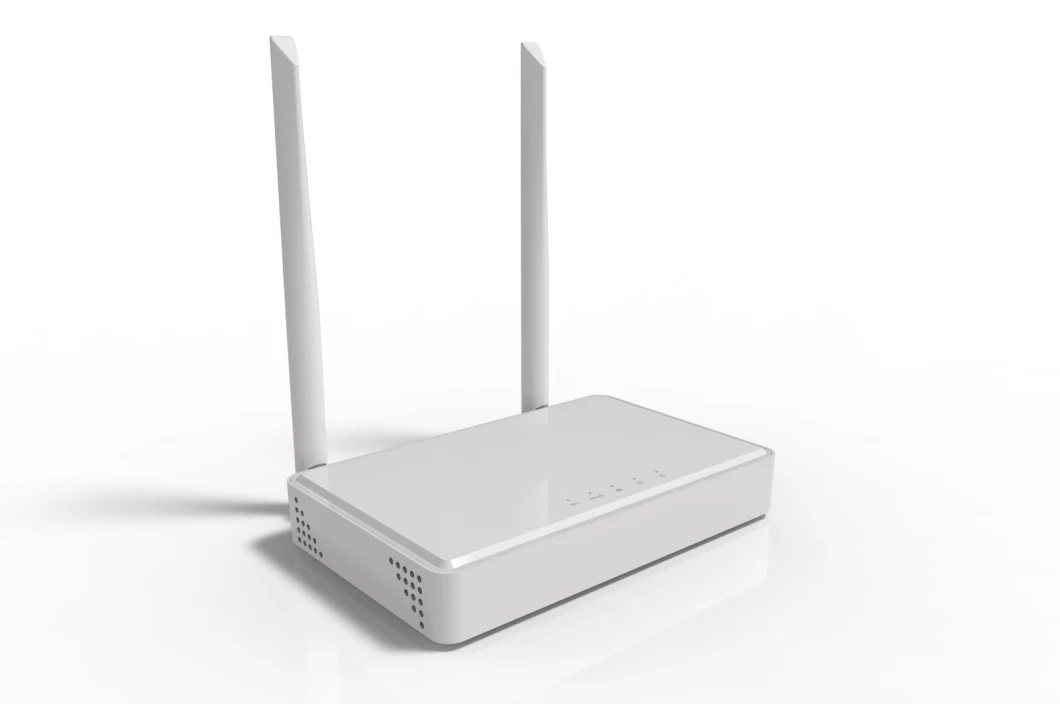

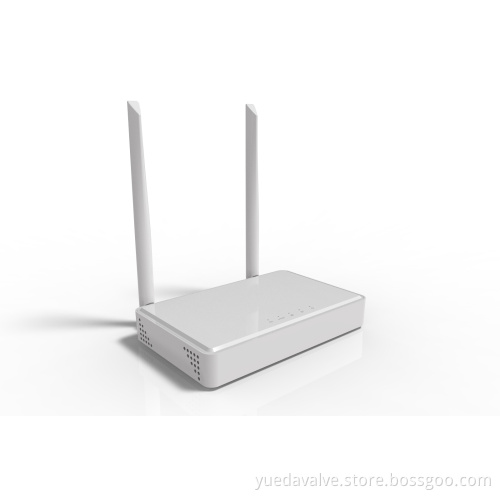

8 Channels SIM 4G/3G/2g Lorawan 868MHz/915MHz/923MHz Gateway
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean
- Port:
- Shanghai
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000/Month |
| Payment Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Incoterm: | CIF,FOB,CFR |
| Transportation: | Ocean |
| Port: | Shanghai |
Product Description
Product Description
Product Description
Description:
The gateway is a smart device but with high reliability, that it could work outdoor or in a complexity environment.
Features:
LoRaWAN half-duplex operation mode;
Uplink include 8 multi-SF LoRa channel, 1 single-SF LoRa channel, and 1 GFSK channel;
Output power achieve to 27dBm max,receiver sensitivity as low as -141dBm@300bps;
Support LoRaWAN ClassA/B/C mode;
Support PoE IEEE 802.3 af/at;
Support 10/100M Ethernet connection and GPRS/3G/4G connection,switch automatically;
Supply with 100m cable via PoE;
High reliability industrial device, IP66 device,easy to setup LPWAN network outdoor
Electrical technical parameters
Item Group | Item | Description | |||
System Configuration | Core Main Frequency BAM Flansh | ARM Cortex-A53 1.2 GHZ 1Gbytes 4Gbytes eMMC | |||
Communication | Wired Network Mobile Cellular LoRaWAN | Ethernet 10M/100Mbps GSM/3G/4GWireless connection Long Range Wireless Communication | |||
Electrical Specification | Power supply input Average Power Consumption LoRa Output Power LoRa Sensitivity | PoE+48 Input IEEE 802.3 af/at 5w type:14dBm@868MHZ;17dBm@470MHz Max:27dBm -141dBm@SF12,BW=125kHZ | |||
Sensor | Temperature | Monitor device internal temperature | |||
User Interface(External) | Mobile Cellular 4G Antenna LoRaWAN Antenna Ethernet GPS Power supply | Connect gateway with internet LoRaWAN transceive,IoT data collection Connect gateway with internet GPS function Power supply input | |||
User Interface | Micro SIM Card Slot | Support Micro SIM Card | |||
(External) | USB UART LED100(Internal) LED200(Internal) LED201(Internal) LED202(Internal)C LED203(Internal) | USB bootloader(Device Firmware Upgrade) UART Terminal for debugging System indicator Ethernet full/half dulex indicator Ethernet link status indicator Ethernet data speed indicator 4G modem | |||
Dimensions Installation | Dimensions Weight Installation | 145*95*40mm 715g Derrick installation,Fixed on the wall | |||
Operating Range | Operational temperature range Memory temperature range | -40 to +75ºC -40 to +85ºC | |||
FAQ
Q:How long will you give me the reply?
A: we will contact you in 12 hours as soon as we can.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
A: we will contact you in 12 hours as soon as we can.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
