High performance wall panel production line

PROCESS FLOW OF PVC WALL PANEL PRODUCTION LINE:

Automatic loader→double screw extruder machine→mould→vacuum calibration spraying platform→online lamination or hot stamping
transfer machine(option)→blade cutter→stacker
Features of the PVC Wall Panel Making Machine:
1. The calcium powder required in the board formula can be increased up to 5%-25% and the required amount of the auxiliary
material decreased by 30%.
2. The products made using the PVC Wall Panel extrusion line offer a fine appearance and uniform plasticization.
3. Through the use of a PID controller, the extrusion machine provides an automatic alarm in case of a problem with any component.


Wide Haul Off Unit8



INTRODUCTION OF PVC PROFILE FOR WALL PANEL

 PVC wall panels are very easy to install and look after. Especially in wet rooms, PVC panels are an excellent alternative to decorating your wall making it waterproof. They are ideal for decoration in bathrooms, toilets, kitchens, basements, garages and all other indoor rooms.

 The special joining system of PVC wall panel is particularly well suited to clad ceilings simply and quickly. The PVC panels can be installed continuously and can bridge any length.


Profile Collection3

THE COMPLETE EXTRUSION CONSISTS OF FOLLOWING ITEMS:

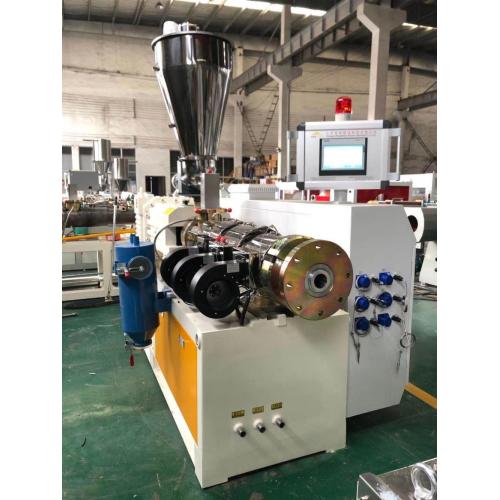

· Conical Twin Screw Extruder:

· It is used for melting and stirring plastic material. LANGBO adapts special screw and barrel type that provide perfect mixing and homogenous. We use special gear box for the Extruder which has axial bearings. Transfer the motor to the screw. For minimizing electricity consumption, we use the famous brand of driving motor of “SIEMENS” on our Extruder. Automation system designed with PLC and touch panel controller can be selected.

·

· Mould:

· Our mould designing gives ideal viscosity to melt material for profile producing. It gives profile or shape to plastic after processing. All faces the plastic in contact with is polish, so that frication losses minimized.



· Calibration Table:

· The shaped profile that come from mould is subjected to calibration and cooling processing on the calibration table. The designing of calibration table varies according to the type and characteristic of the profile. The area that contacts with water is made of stainless steel in order to prevent corrosion.



· Caterpillar Haul-off:

· The designing of caterpillar haul-off changes depending on the contact area that is related to the profile measurement. The inverter control is standard on all caterpillar haul-off. For this reason, as the speed can adjusted with respect to material output rate. The caterpillar haul-off is also capable of making measurement adjustment through speed control equipment.



· Saw cutter:

· In the speedy working condition, profile saw works with high efficiency in term of cutting frequency. As the saw table and clamps move synchronously. The saw cuts the profile in required length.

· During the cutting processing, swarf and dust appears, in order to prevent these in production area, there is a dust collection unit is integrated in saw cutter. This unit absorbs swarf, dust effectively and removes to storage.



· Tip-off unit:

· It operates on pneumatic cylinder.


Wide Haul Off Unit9Wide Calibration Table4


SPECIFICATION:

The Table provides a general information for standard Product.

For Further customized technical assignment please contact us.

Model

SJZ45

SJZ51

SJZ65

SJZ80

SJZ92

Screw diameter (mm)

45/100

51/105

65/132

80/156

92/188

Screw rotation speed (r/min)

4-45.5

1-30

1-34.7

1-36.9

1-32.9

The effective length of the screw (mm)

1000

1050

1430

1800

2520

Main motor power (kW)

15

22

37

55

90

Barrel heating power (kW)

12

18

24

36

48

Capacity (kg/h)

95

110

250

380

520

Central height (mm)

1000

Net Weight(kg)

3000

3200

5000

6500

7500
