High quality outdoor wpc decking board

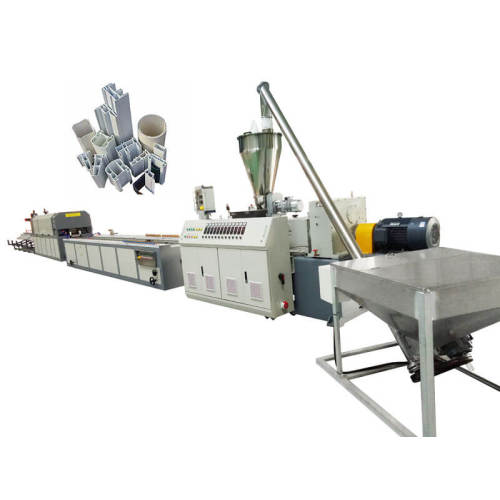

WPC PROFILE EXTRUSION LINE
The long-standing experience in plastic processing allows LANGBO MACHINERY to ensure high performance and great reliability over time.
LANGBO MACHINERY single-screw and twin-screw profile extrusion line allow producing rigid and flexible profiles with different weights and dimensions from a few grams to several kilogrammes/metre, from a few millimetres to more than one metre width.
FEATURES:
To complete our profile production lines, you can find a wide range of LANGBO MACHINERY modular accessories:
heads with machine control and fully thermoregulated, both inside and outside.
calibration and cooling benches
take off modules provided with local and remote PLC control
vertical cutter: suitable for profiles up to 300 mm
horizontal cutter: designed for production of wide flat profiles
SPECIFICATION:
The Table provides a general information for standard Product.
For Further customized technical assignment please contact us.
|
Model |
SJZ45 |
SJZ51 |
SJZ65 |
SJZ80 |
SJZ92 |
|
Screw diameter (mm) |
45/100 |
51/105 |
65/132 |
80/156 |
92/188 |
|
Screw rotation speed (r/min) |
4-45.5 |
1-30 |
1-34.7 |
1-36.9 |
1-32.9 |
|
The effective length of the screw (mm) |
1000 |
1050 |
1430 |
1800 |
2520 |
|
Main motor power (kW) |
15 |
22 |
37 |
55 |
90 |
|
Barrel heating power (kW) |
12 |
18 |
24 |
36 |
48 |
|
Capacity (kg/h) |
95 |
110 |
250 |
380 |
520 |
|
Central height (mm) |
1000 |
||||
|
Net Weight(kg) |
3000 |
3200 |
5000 |
6500 |
7500 |
